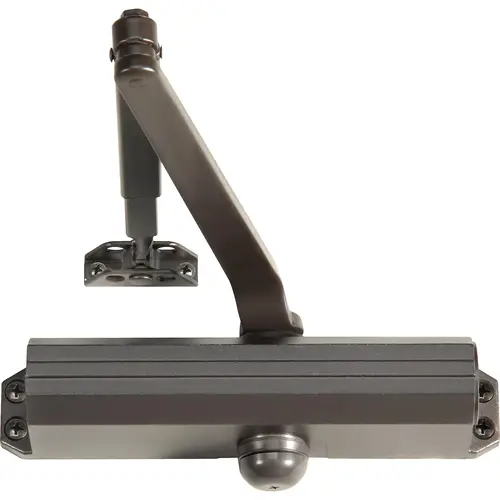

Norton Rixson 1601 690 1601 690 Tri-Pack Closer Size 1-6 - Dark Bronze
Item #: 1601 690 by Norton
UPC #: 049306083768
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Exceeds 25 Million Cycles Based on Internal Cycle Testing
- Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy shell.
- Closers shall be surface mounted and shall project no more that 2-7/8" from the surface of the door.
- Closers shall be non-handed to permit installation on doors of either hand.
- Closer fluid shall contain lubricity and anti-oxidation agents.
- Non Handed for Easy Installation
- Rack and Pinion Design
- Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
- Closers shall have multi-size spring power adjustment to permit setting of spring from (1 through 4) or (3 through 6).
- Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep and latch speed.
- Corrosion Resistant Model
- Closers shall have adjustable backcheck cushioning controlled by a hex key adjusted valve.
- [Closers shall have adjustable delayed-action closing controlled by a hex key adjustable valve.]
- Molded Plastic Cover
- [Closer body shall be enclosed in/concealed with a full molded cover.]
- [Closers shall be highly corrosion resistant and shall have all external body components of aluminum, zinc alloy or stainless steel material and all stainless steel fasteners.]
- Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( +/- 7-1/2% ) power adjustment. ** [1601] [1601BF] [1601SS].
Finish
Dark Bronze
Function
Tri-Packed Non-Hold Open Arm
Series
1601 Series
Grade
ANSI/BHMA Grade 1
Application
Aluminum Storefronts; Office Doors; Utility Closets; Storage Rooms
Type
Surface
Hand
Non-Handed
Color
Dark Bronze Painted
Color Code
690/US20
Case Length
12.75"
Mounting Style
Tri Mount
Arm Type
Regular Arm
Fire Rated
3 Hours {A}
Origin
USA
Closer Size
Adj. 3 to 6
BAA Qualified
Yes
Package Height
2.88"
Package Length
9.75"
Package Volume
218.75
Package Width
3.13"
Back Check
Adjustable
Case Height
10.5"
Case Volume
1539.5625
Case Width
11.5"
Cold Weather Fluid
Yes
Mounting Location
Push or Pull Side
Package Qty
1
Special Marks
Fire rated 3 Hours {A}
Base Material
VARIES
Spring Size
Adjustable 1-6
Mount
Push or Pull Side
Finish Description
Dark Bronze Painted
Product Type
Door Closer/Holder/Stop
Warranty
30 Year Limited Warranty
Pack Size
1
UNSPSC
30171514
Product Height
2-5/8 Inch
Product Length
9-3/4 Inch
Product Width
2-7/8 Inch
ADA Compliant
YES
Finish Family
Dark Bronze
Product Material
Cast Aluminum
Closer Cover
Without Cover
Standards
Grade 1 - ANSI BHMA
Closer Arm Type
Regular Arm
Closer Clearance
1-1/2 Inch
Closer Fluid Temperature Range
Extremely High to as Low as -40°F
Closer Fluid
NorGlide
Closer Piston Diameter
1-3/8 Inch
Closer Pinion Diameter
5/8 Inch
Function Family
Non Hold Open Door Closer
Mounting Hole Size
3/4" x 9-1/16"
Fastener Type
Self Drilling Screws
Features
Independent Latch; Sweep and Backcheck Intensity Valves to Ensure Positive Control; Quick Adjust Slide Arm for Easy Installation and Adjustment
Mounting Type
Push or Pull Side
Handing
Non-Handed
Door Thickness
1-3/4 inch
Door Size
42" (Interior); 36" (Exterior)
Maximum Door Opening
180°
Minimum Hold-Open
90°
Manufacturer Parent
Assa Abloy
Closer Hold-Open
false
Maximum Hold-Open
180°
Sub-Series
DC_Surface Mounted Closers_norton_1
Item Weight
8.5 lbs
