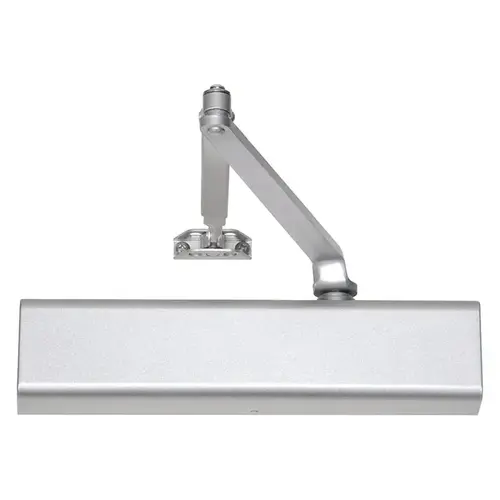

Norton 210 TPN 689 Tri-Packed Door Closer Adjustable Size 1-6 Aluminum Painted
Item #: 210 TPN 689 by Norton
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Adjustable spring size 1-6
- Non-handed
- Cast aluminum body
- Rack-and-pinion design
- Independent latch sweep and backcheck intensity valves
- Full plastic cover
- Closer footprint: 3/4" x 12"
- Projection: 2-1/8"
- Non-hold open, hold open and heavy-duty arms
Finish
Aluminum Painted
Function
Tri-Packed Non-Hold Open Arm
Grade
ANSI/BHMA Grade 1
Application
Office Doors; Utility Doors; Storage Doors; Retail or Outlet Malls; Convenience Stores; Warehouse Doors
Cover
Plastic
Type
Surface
Hand
Non-Handed
Color
Aluminum Painted
Color Code
689/US28
Case Length
14.5"
Mounting Style
Tri Mount
Arm Type
Regular Arm
Fire Rated
3 Hours {A}
Origin
USA
Closer Size
Adj. 1 to 6
BAA Qualified
Yes
Package Height
3.25"
Package Length
13.25"
Package Volume
290.671875
Package Width
6.75"
Back Check
Adjustable
Case Height
7.5"
Case Volume
1549.6875
Case Width
14.25"
Cold Weather Fluid
Yes
Mounting Location
Push or Pull Side
Package Qty
1
Special Marks
Fire rated 3 Hours {A}
Base Material
VARIES
Spring Size
1-6
Mount
Push or Pull Side
Finish Description
Aluminum Painted
Product Type
Door Closer/Holder/Stop
Series
210 Series
Manufacturer Parent
Assa Abloy
Handing
Non-Handed
Closer Arm Type
Non-Hold Open Arm
Maximum Door Opening
180°
Sub-Series
DC_Surface Mounted Closers_norton_22
ADA Compliant
YES
Mounting Type
Push or Pull Side
Closer Arm Extension
2-1/8 Inch
Closer Cover
Full Plastic Cover
Function Family
Non Hold Open Door Closer
Standards
Grade 1 - ANSI/BHMA A156.4; UL/cUL Listed; UL10c; ANSI/BHMA A117.1
Door Size
42" (Interior); 36" (Exterior)
Door Thickness
1-3/4 inch
Features
Rack-And-Pinion Design; Independent Latch Sweep and Backcheck Intensity Valves; Consistent and Dependable; Offers Smooth Door Control
Product Material
Cast Aluminum
Fastener Type
Self Drilling Screws
Closer Hold-Open
false
Warranty
10 year limited warranty
Included Components
Sex Nuts
Finish Family
Aluminum
MADE IN THE USA
No
Security Grade
ANSI Grade 1
Package Quantity
1
UL Listed
No
Door Handing
Non Handed
Hardware Included
False
Hex Key Dogging
False
AbilityOne
No
Lever/Pull Included
True
UNSPSC
30171514
Commercial/Residential
Commercial
Hinge Type
Door Closer
Interior/Exterior
Interior/Exterior
Material
Cast Aluminum
Adjustable
True
GSA Approved
No
Mount Type
Tri Pack
TAA/BAA Compliant
Yes
Product Overview
210 SeriesDoor Closer
The 210 Series is an adjustable door closer for light traffic commercial openings, including office and utility closet doors. It features an adjustable spring; tri-packed, non-hold open arms; and both independent and separate latch, sweep and backcheck intensity valves. The 210 is ideal for stocking distributors serving high-volume after-market segments.
Features:- Adjustable spring size 1 through 6
- Non-handed
- Cast aluminum body
- Rack-and-pinion design
- Independent latch sweep and backcheck intensity valves
- Full plastic cover
- Non-hold open, hold open and heavy-duty arms
- Closer footprint: 3/4" x 12"
- Cover dimensions: 2-15/16" high x 2-1/8" deep x 13-1/16" long
- Available in 689 (aluminum) or 690 (dark bronze) finishes
- Sex nuts (SN-134) included
- 10 year limited warranty
- ANSI/BHMA A156.4, Grade 1
- UL / cUL listed for use on fire rated doors
- UL10C listed for positive pressure fire test
- Meets requirements for Americans with Disabilities Act (ADA) and ANSI/BHMA A117.1
- Door Closers for Low Opening Force Applications:
- Door closers installed in openings required to meet the requirements of the Americans With Disabilities Act or ANSI/ BHMA Standard A117.1, when adjusted to meet those requirements, may not provide adequate closing power to dependably close and latch the door based on opening or site conditions.
