7500 Series Surface Door Closer, Aluminum Painted

Roll over image to zoom in

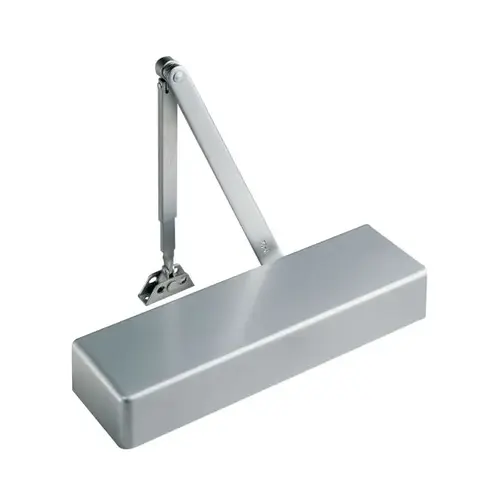

Norton 7500 689 7500 Series Surface Door Closer, Aluminum Painted

Item #: 7500 689 by Norton

UPC #: 049306077309

See reviews See reviews
In Stock

$449.82

/each
SAVE UP TO 44.98

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Heavy Duty Arms
  • Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy body.
  • Closers shall be surface mounted and shall project no more that 2-3/16" (55mm) from the surface of the door.
  • Closers shall be non-handed to permit installation on doors of either hand.
  • Closer fluid shall contain lubricity and anti-oxidation agents.
  • Non Handed for Easy Installation
  • Rack and Pinion Design
  • Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
  • Closers shall have multi-size spring power adjustment to permit setting of spring from size 1 through size 6.
  • Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep speed and latch speed.
  • Backcheck Positioning Valve
  • Closers shall have backcheck cushioning controlled by a hex key adjusted valve.
  • Closers shall have backcheck position controlled by a hex key adjusted valve.
  • [Closers shall have adjustable delayed-action closing controlled by a hex key adjustable valve.]
  • Molded Plastic Cover
  • [Closers shall be highly corrosion resistant and shall have all external body components of aluminum, brass or stainless steel material and all fasteners of stainless steel.]
  • Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( +/–7-1/2% ) power adjustment.
  • Environmental Product Declaration (EPD) certified

Finish

Aluminum Painted

Function

Tri-Packed Non-Hold Open Arm

Series

7500 Series

Grade

ANSI/BHMA Grade 1

Application

Classrooms; Offices; Main Entrance Doors; Hospitals; High Use High Abuse Doors

Cover

Plastic

Type

Surface

Hand

Non-Handed

Color

Aluminum Painted

Color Code

689/US28

Case Length

15.75"

Mounting Style

Tri Mount

Arm Type

Regular Arm

Fire Rated

3 Hours {A}

Origin

USA

Closer Size

Adj. 1 to 6

BAA Qualified

Yes

Package Height

3.5"

Package Length

15.25"

Package Volume

333.59375

Package Width

6.25"

Back Check

Adjustable

Case Height

7.75"

Case Volume

1556.296875

Case Width

12.75"

Cold Weather Fluid

Yes

Mounting Location

Push or Pull Side

Package Qty

1

Special Marks

Fire rated 3 Hours {A}

Base Material

VARIES

Finish Description

Aluminum Painted

Spring Size

1-6

Mount

Push or Pull Side

Product Type

Door Closer/Holder/Stop

Warranty

30 Year Limited Warranty

Pack Size

1

UNSPSC

30171514

Product Height

3-7/8 Inch

Product Length

13-5/8 Inch

Product Width

2-1/8 Inch

ADA Compliant

YES

Finish Family

Aluminum

Product Material

Cast Aluminum

Closer Cover

Plastic Cover

Standards

Grade 1 - ANSI/BHMA A156.4

Closer Arm Type

Regular Arm

Closer Clearance

1 Inch

Closer Fluid Temperature Range

Extremely High to as Low as -40°F

Closer Fluid

NorGlide

Closer Piston Diameter

1-1/2 Inch

Closer Pinion Diameter

5/8 Inch

Function Family

Non Hold Open Door Closer

Mounting Hole Size

2-3/8" x 6-3/4"

Templating

Full Size

Fastener Type

Self Drilling Screws

Features

Backcheck Positioning Valve; All Standard Arm Applications Allow Doors To Swing 180°

Mounting Type

Push or Pull Side

Handing

Non-Handed

Door Thickness

1-3/4 inch

Door Size

32" to 54" (Interior); 30" to 48" (Exterior)

Maximum Door Opening

180°

Manufacturer Parent

Assa Abloy

Closer Hold-Open

false

Closer Arm Family

Regular Non-Hold Open

Sub-Series

DC_Surface Mounted Closers_norton_8

Item Weight

13 lbs

7500 SeriesInstitutional Door Closer

The 7500 Series is a robust, multi-sized surface closer designed to deliver superior performance and long-term reliability. Ideal for interior or exterior doors in facilities that demand reliability, such as government, healthcare and educational institutions.

Features:
  • Tri-Style® packaging; tri-packed for regular, top jamb or parallel arm mounting
  • Non-handed
  • Rack-and-pinion design
  • Cast aluminum body
  • Adjustable spring sizes 1-6
  • 2-1/8" (54mm) projection
  • 1-1/2" (38mm) diameter piston
  • 5/8" (16mm) diameter pinion journals
  • Staked valves
  • Retrofit plates
  • NorGlide® fluid
  • Molded plastic cover
  • All standard arm applications allow doors to swing 180°, conditions permitting
  • Self-drilling screws
  • Full-size template
  • Application specific mounting: Regular (S), Top Jamb (JS) or Parallel (P) mount
  • Heavy-duty arms: Regular Rigid, Parallel Rigid, CloserPlus®, CloserPlus Spring™ and Unitrol®
  • Slide Tracks: push or pull side mounting
  • Exceeds 25 million cycles
Optional Features:
  • Standard, separate and independent, latch, sweep and backcheck intensity valves
  • Backcheck positioning
  • Enhanced backcheck. Specify EBC suffix
  • Delayed action with pressure relief valve
  • Corrosion resistant model (non-hold open only): specify 7500SS
  • Metal cover: specify M suffix
  • Lead lined metal cover: specify MLL suffix
Certifications:
  • ANSI/BHMA A156.4, Grade 1 certified
  • UL / cUL listed for use on fire rated doors
  • UL10C listed for positive pressure fire test
  • 7500 door closers are designed to comply with requirements for the Americans with Disabilities Act (A.D.A) and ANSI standard A117.1
  • This product is manufactured in an ISO 9001, ISO 14001 facility
Caution:
  • Door Closers for Low Opening Force Applications:
  • Door closers installed in openings required to meet the requirements of the Americans With Disabilities Act or ANSI/BHMA Standard A117.1, when adjusted to meet those requirements, may not provide adequate closing power to dependably close and latch the door based on opening or site conditions.
Environmental Product Declaration:
  • An Environmental Product Declaration (EPD) documents the cradle-to-grave life cycle of a product and how it affects the environment. An important aspect of EPD® is to provide the basis of a fair comparison of products and services by its environmental performance. EPDs can reflect the continuous environmental improvement of products and services over time and are able to communicate and add up relevant environmental information along a product's supply chain.
Windstorm:
  • Norton 7500 door closers are UL certified for inswing and outswing single and pair (up to 8'0" x 8'0") door assemblies to ICC 500 for Storm Shelters. Additionally, the 7500 meets FEMA 361 guidelines. 7500 is part of a complete ASSA ABLOY tornado and hurricane shelter solutions utilizing Ceco StormPro 361, Curries StormPro 361, Fleming F5 doors and frames and McKinney SP hinges.
