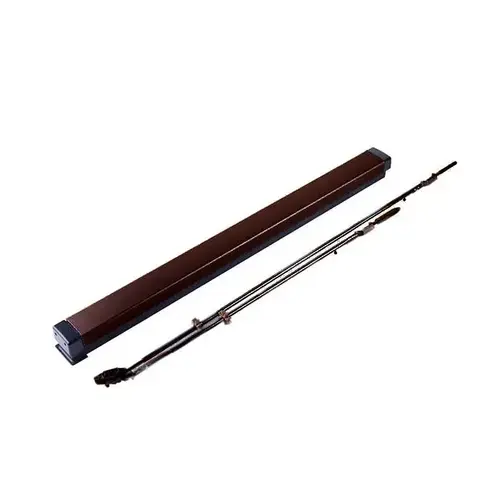

Adams Rite 8622MLR36 Narrow Stile Concealed Vertical Rod Single Switch Exit Device 36" with Electric Latch Retraction Dark Bronze Finish

Item #: 8622MLR36 by Adams Rite

See reviewsSee reviews
In Stock

$1,158.60

/each
SAVE UP TO 115.86

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Narrow Stile Concealed Vertical Rod Exit Device
  • Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
  • Handing: Device is non-handed. Lever Entry Trim is field reversible.
  • Patented Top Latching Mechanism Interlocks Door to Frame
  • Strong, Durable Construction for High Level of Security
  • Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
  • Bar Height: Standard model adjusts from 30” to 44”.
  • Easy To Install
  • Warranted Free From Defects In Workmanship And Materials Under Normal Use And Service
  • Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
  • Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.
  • Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
  • Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
  • Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
  • Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
  • Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.
  • Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
  • 3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
  • Warranty: Five year limited.

Finish

Dark Bronze

Function

Exit Only

Strike

Standard Header Strike

Series

8600 Series

Product Type

8600 Series

Color

Dark Bronze Anodized Aluminum

Color Code

313

Application

Narrow. Medium and Wide Stile Doors

Length

3 Foot Device

Device Length

36 Inch (3 Foot)

Stile

Narrow Stile

Door Height

8 Foot (96 Inches)

Maximum Door Opening

36

Fire Rated

No

Finish Description

Dark Bronze Anodized

Device Type

Concealed Vertical Rod Device

Dogging Options

Hex Key Dogging

Electric Options

MLR-Motorized Latch Retraction

Latch Type

Rotating Top Bolt

Strike Type

Standard Header Strike

ADA Compliant

No

Finish Family

Dark Bronze

Included Components

Standard Self-Tapping Screws and Machine Screws

Standards

ANSI/BHMA A156.3, Grade 1, UL305 Panic Hardware

Stile Width

2 Inch

Device Bar Projection

2-5/8 Inch

Device Rating

Panic Exit Hardware

For Door Height

66 Inch

Device Trim Function

Key Locks, Unlocks Lever and Key Releases Lever

For Door Thickness

1-3/4" to 2-1/4"

Function Family

Exit Only Device

Device Trim ANSI Function

08/09

Electrified Features

Electronic Latch Retraction

Features

Top Latching Mechanism; Push Bar Made of Extruded Aluminum

Door Material

Aluminum

Manufacturer Parent

Assa Abloy

Vertical Rod Adjustment

30" to 44"
