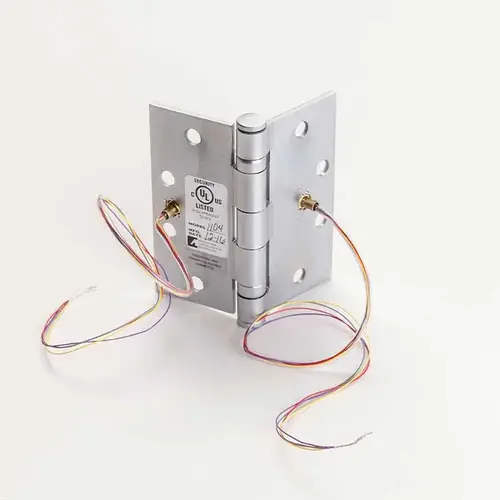

ACSI BB1279-4.5X4-26D-1104 Full Mortise Electric Commercial Hinge - 4 Wire Satin Chrome
Item #: BB1279-4.5X4-26D-1104 by ACSI
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Series
BB1279 Series
Product Type
Electronic Hinge/Pivot
Hinge Size
4-1/2 x 4 Inch
Finish Description
Satin Chrome
Function
Electric Hinge
Finish
Satin Chrome
Pin Type
Non-Removable
Fastener Size
1/2" x 12-24 Machine; 1-1/4" x 12 Wood
Number of Mounting Holes
8 Foot (96 Inches)
Manufacturer Parent
ACSI
Recommended For
Medium Frequency Doors or Doors Requiring Low Frequency Service
Distance From Leaf Edge To Swag Line
1-7/8"
Sub-Series
HP_Electrified Hinges and Pivots_acsi_7
ADA Compliant
No
Bearing Type
Ball
Function Family
Hinge/Pivot
Mount
Full Mortise
Standards
ANSI A8112; Complies with NFPA80
Hinge Corner
Square Corner
Number of Knuckles
5
Features
Two Ball Bearings; Non-Removable Pin with Button Tip and Plug; Electric Through-Wire Only
Product Material
Steel
Color Code
626/US26D
Number of Wires
4
Knuckle diameter
39/64"
Included Components
Fasteners/Screws
Finish Family
Satin Chrome
Product Overview
ACSI Series 1100 Electric Hinges/Pivots are designed for doors that require concealed low voltage current transfer concealed electric monitoring or concealed low voltage current transfer with monitoring. With over 30 years of experience ACSI Series 1100 products are UL Listed and carry a full one-year warranty. UL Listed. UL Fire Rating on steel and stainless electric hinges. Provide current transfer to electrified mortise or cylindrical locks exit devices with electric latch retraction electric strikes (pairs of doors) and locks with monitoring or request to exit switches. UL Rated for 3.5 amp continuous and 16 amp pulse. Note Electric hinge must be placed in the center position only. ACSI requires NON-NRP hinges for modification. Hinge pin is not field removable after modification.
