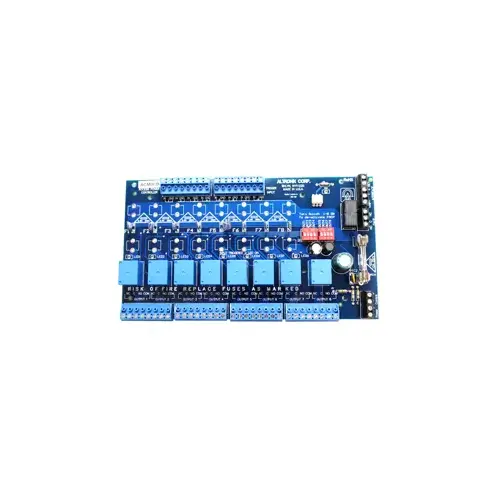

Altronix ACM8CB Access Power Controller, Input 12/24VAC/DC, 8 PTC Outputs

Item #: ACM8CB by Altronix

See reviewsSee reviews
In Stock

$124.28

/each
SAVE UP TO 12.43

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Type

Wire-In Transformer

Alternate Part Number-1

173274

Manufacturer Parent

Altronix

Number of Relays

8

Enclosure Style

Board Only

Output Type

Multi Voltage

Power Supply Type

Unswitching

Function

Controller

Sub-Series

ACM8CB

Fuse Size

2.5A

ADA Compliant

No

Operating Temperature

32 to 120°F

Number of Outputs

8

Visual Indicators

Relay Energized; FACP Disconnect

Function Family

Part/Component

Standards

UL 294 Listed; CSA Standard C22.2 No.205-M1983

Rated Voltage

32V

Monitoring Option

Yes

Fire Alarm Interface

Yes

Product Type

Access Control Part/Accessory

Features

Removable Terminal Blocks; FACP Interface Enables Emergency Egress, Alarm Monitoring or May be Used to Trigger Other Auxiliary Devices

Product Dimensions

5.175" x 3.36" x 1-1/4"

Series

Parts/Accessories

Input Voltage

12 to 24VAC/VDC

Product Overview

Access Power Controller, Input 12/24VAC/DC, 8 PTC Outputs

ACM8CB converts one (1) 12 to 24 volt AC or DC input into eight (8) independently controlled PTC protected outputs. These power outputs can be converted to dry form "C" contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. The ACM8CB will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. This unit is designed to be powered by one common power source which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP.

A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.

Altronix Power Supplies are ideal for a multitude of purposes, including:

  • General Use
  • CCTV
  • Fire Alarm
  • POIP
