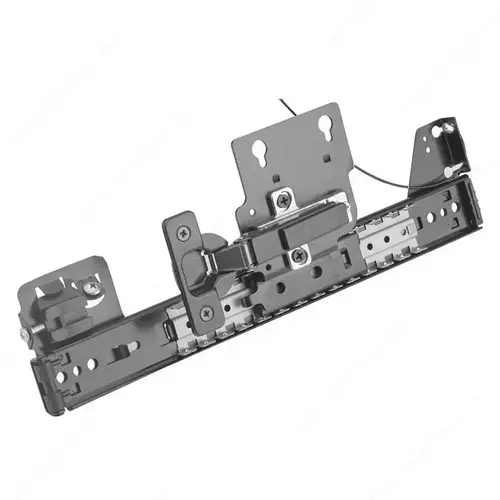

Accuride T13329018Click To Copy Series 1332 Pocket Door Slide - 75 lb Cable Synchronisation Pair

Made for tall and heavy pocket doors, the Accuride CB1332 slide provides smooth and silent movement for media centers, armoires, and concealed storage. The CB1332 also includes Accuride's advanced cable system, which eliminates the "racking" often found when opening or closing tall cabinet doors.
- For loads up to 75 lbs
- For pocket doors up to 78" tall by 26" wide
- Features advanced Anti-Rak stabilizer system
- Features self-aligning movement
- Vertically or horizontally mounted
- Includes hold-out detent
- Includes 35 mm hinges
- Comes in standard black finish
The Accuride CB1332 is identical to the CB1432, but includes 35 mm hinges for mounting. For an option without hinges included, please view the Accuride CB1432
Advantages And Benefits
- Side mounting
- Extension loss of 4-1/2"
- 75 lb. capacity per pair (34 kg)
- Maximum door size: 78" (two systems may be combined)
- Steel ball-bearing action with cable system
Application
- Commercial and residential
Included Product(S)
35 mm inset hinges and mounting plates included.
Important Information
- For 2 doors 36"-56" (914 mm-1422 mm) tall, two hinge carrier kits (#41800408) are required for installation.
- For 2 doors 57"-78" (1448 mm-1981 mm) tall, three hinge carrier kits (#41800408) are required for installation.
- With 35 mm hinge (41800407, 41800389), allows installation of inset doors from 3/4" to 13/16" thick
- With 40 mm hinge (41800394), allows installation of inset doors from 15/16" to 1-1/4" thick
- Overlay mounting is possible with hinge kit 41800292.
- To install two doors from 56" to 78", three 41800408 kits are necessary.
