Hinge Satin Stainless Steel

Roll over image to zoom in

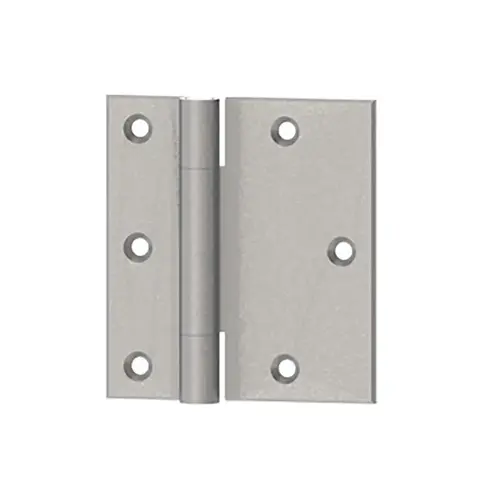

Hager AB852 4-1/2 US32D Hinge Satin Stainless Steel

Item #: AB852 4-1/2 US32D by Hager

Item Discontinued!
See reviewsSee reviews

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • Hinges are manufactured in accordance with ANSI/BHMA A156.1. Self-closing hinges and pivots are in accordance with ANSI/BHMA A156.17 using three hinges per opening on a 3’0” x 7’0” x 1-3/4” (914 mm x 2134 mm x 44 mm) door.
  • Round corners are available in 1/4” (6 mm) (standard) or 5/8” (16 mm) radius.
  • Full Mortise Both leaves are mortised, one leaf in the door and one leaf in the frame (wood door or hollow metal door with wood frame or hollow metal frame). Example: BB1279, 4-1/2” x 4-1/2” (114 mm x 114 mm), US26D
  • Half Mortise One leaf is mortised in the door and the other is surface applied to the frame (hollow metal door with channel iron frame). Example: BB1109, 4-1/2” (114 mm), US26D
  • Full Surface Both leaves are applied to the surface, one to the door and the other to the frame (metal core door or hollow metal door with channel iron frame). Example: BB2171, 5” (127 mm), USP
  • Half Surface One leaf is mortised in the frame and the other is surface applied to the face of the door (wood door with wood frame or metal core door with hollow metal frame) Example: BB1163, 5” (152 mm), US26D

Pin Type

Removable

Weight

Heavy Weight

Knuckles

3

Height

4-1/2 In.

Color

Satin Stainless Steel

Fire Rated

3 Hours {A}

Special Marks

Fire rated 3 Hours {A}

Bearing Type

Concealed Bearing

Package Qty

1

Hinge Type

Hinge, Full Surface

Color Code

630/US32D

Mounting Style

Square

Base Material

Stainless Steel

Product Overview

Full Surface Concealed Anti-Friction Bearing Hinge, Heavy Weight, 4-1/2", Stainless Steel, 3 Knuckle, Satin Stainless Steel

Three knuckle ball bearing heavy weight hinge. For use with heavy weight doors or doors requiring high frequency service

There are three dimensions to know in order to determine the minimum width of the hinge: door thickness, backset, and clearance required.

Today, the Hager name is synonymous with architectural hinges. In fact, they are the industry's premiere designer and manufacturer of architectural hinges, with a product line that offers one of the widest varieties of sizes, shapes, and finishes--all of which meet or exceed ANSI standards.
