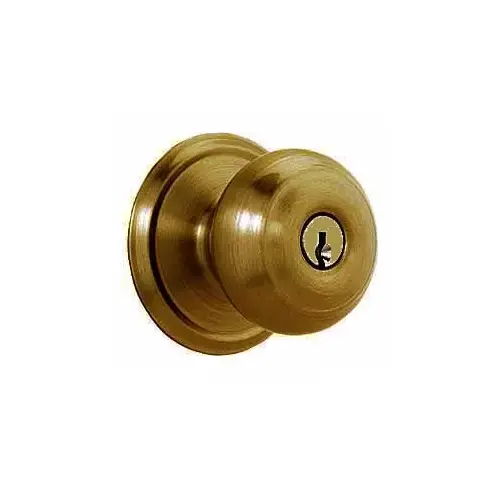

A53PD Georgian Entrance Lock, Satin Brass Blackened

Roll over image to zoom in

Schlage Commercial A53PD GEO 609Click To Copy A53PD Georgian Entrance Lock, Satin Brass Blackened

Item #: A53PD GEO 609 by Schlage Commercial

UPC #: 043156912759

See reviewsSee reviews
See reviews summary

$234.68

/each
SAVE UP TO 23.47

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • Entry - Turn/Push Button Locks Outside Knob Until Unlocked with Key or Rotating Inside Turn
  • ANSI/BHMA Certified A156.2
  • 1-3/8" to 1-7/8" Door Range
  • UL Listed for 3 Hour Fire Door
  • Commercial Grade 2

Thickness

1-3/4 In.

Color

Satin Brass Blackened Satin Relieved Clear Coated

Color Code

609/US5

Keyway

Schlage C

Function

53-Entrance

Cylinder Type

P-6 Pin Conventional (Keyed 5)

ANSI Function

F109 - Entry/Office

Bolt Protection

1/2 In.

Dust Box

Plastic

Latch Backset Dim

2-3/8 In.

Latch Number

11-068

Latch Type

Dead Latch (Guarded)

Lever/Knob Design

GEO - Georgian

Lock Face Size

2-1/4 In. x 1 In.

Package Qty

1

Rose/Escutcheon Design

GEO - Georgian

Strike Height

2-3/4 In.

Strike Number

10-001

Strike Type

T-Square Corner

Strike Width

1-1/8 In.

Finish

Satin Brass Blackened

Backset

2-3/8", 1" x 2-1/4", Square Corner

Strike

T-Strike, 1-1/8" x 2-3/4", 1-1/4" Lip, Sq Corner

Design

Georgian

Series

A Series

Grade

ANSI/BHMA Grade 2

Finish Description

Satin Brass Blackened

Knob style

GEO-Georgian

Keyblank Grouping

SCHL-C-6-1

Rose/Escutcheon Trim

Round Rose

Product Type

Cylindrical Lock

Projection

2.3125

Door Thickness

1 3/8" - 1 7/8"

Knob Diameter

2.1250

ADA Approved

False

Keying Charges

CCAM

Product Overview
Entrance Lock, Keyed function, "C" Keyway, 2-3/8" Backset Square Corner, 2-3/4" T-Strike Square Corner. 609 Antique Brass
A SeriesCylindrical locks

The A Series cylindrical lock is Schlage's first lock and continues to exceed ANSI/BHMA Grade 2 standards, allowing it to be used in a wide range of commercial and residential applications. A Series locks are available in ten finishes and five trim designs allowing it to fit any new or existing environments.

Specifications: Handing:
  • Keyed functions are reversible. Non-keyed functions are not handed
Door thickness:
  • 1 3/8" to 1 7/8" (35 mm to 48 mm) standar
Backset:
  • 2 3/8" (60 mm) standard. 2 3/4" (70 mm)
Front:
  • Steel. 1 1/8" x 2 1/4" square corner, beveled, for 2 3/4" backset standard. Optional 1" square corner, 1" radius corner, and non-UL drive-in/round face
Lock chassis:
  • Steel, zinc dichromate plated for corrosion resistance
Latch bolt:
  • Brass, chrome plated, 1/2" throw, deadlocking on keyed and exterior functions
Exposed trim:
  • Wrought brass, bronze or stainless steel. Levers are pressure cast zinc, plated to match finish symbols
Strike:
  • T-strike 1 1/8" x 2 3/4" (29 mm x 70 mm) x 1 1/8" (29 mm) lip to center with box standard
Cylinder and keys:
  • Commercial: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock
  • Residential: 6-pin C keyway, keyed 5-pin
Keying options:
  • Interchangeable core and Primus XP high security cylinders. Master keying, grand master keying, and construction keying
Warranty:
  • Commercial: three-year limited
Finishes: Georgian:
  • 605 - Bright brass
  • 606 - Satin brass
  • 609 - Antique brass
  • 625 - Bright chromium plated
  • 626 - Satin chromium plated
  • 643e - Aged bronze
  • e = an equivalent finish to the BHMA standard.
Orbit:
  • 605 - Bright brass
  • 606 - Satin brass
  • 609 - Antique brass
  • 612 - Satin bronze
  • 613 - Oil rubbed bronze
  • 625 - Bright chromium plated
  • 626 - Satin chromium plated
  • 643e - Aged bronze
  • e = an equivalent finish to the BHMA standard.
Plymouth:
  • 605 - Bright brass
  • 606 - Satin brass
  • 609 - Antique brass
  • 612 - Satin bronze
  • 613 - Oil rubbed bronze
  • 625 - Bright chromium plated
  • 626 - Satin chromium plated
  • 629 - Bright stainless steel
  • 630 - Satin stainless steel
  • 643e - Aged bronze
  • e = an equivalent finish to the BHMA standard.
Tulip:
  • 605 - Bright brass
  • 606 - Satin brass
  • 609 - Antique brass
  • 625 - Bright chromium plated
  • 626 - Satin chromium plated
  • 643e - Aged bronze
  • e = an equivalent finish to the BHMA standard.
Levon:
  • 605 - Bright brass
  • 612 - Satin bronze
  • 613 - Oil rubbed bronze
  • 626 - Satin chromium plated
  • 643e - Aged bronze
  • e = an equivalent finish to the BHMA standard.
Certifications: ANSI:
  • Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
Federal:
  • Meets FF-H-106C.
California state reference code:
(Formerly Title 19, California State Fire Marshal Standard)
  • All levers with a return to door of 1/2" (64mm) or less comply.
UL/cUL:
  • All locks listed for A label single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing.
ADA compliant:
  • Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.

This product contains 1 cylinders per lock and is typically keyed alike in quantities of 1.
