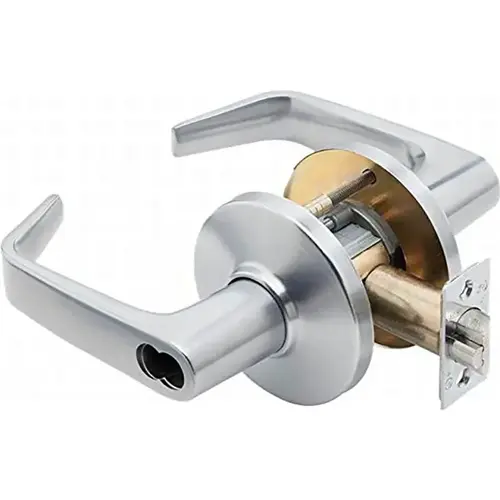

Stanley Best 9K37D15CS3626 9K Series 2-3/4" Backset 7 Pin Storeroom 15 Lever and C Rose with ANSI Strike Less Core Satin Chrome Finish
Item #: 9K37D15CS3626 by BEST
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Built To Tight Tolerances, To Provide The Highest Level Of Mechanical Security And Enhance The Integrity Of The Lock
- ADA–Americans With Disabilities Act: 9K series – The design and operation of the BEST® cylindrical lock meets the intent of the standard for ANSI A117.1 section 404.2.6
- Strong Through-Bolt Mounting Studs Provide For Great Torque Resistance
- Builders Hardware Manufacturers Association: 9K series – Listed by BHMA for A156.2, Series 4000, Grade 1.
- Strong Retractor Springs Provide Resistance To Lever Sag
- Underwriters Laboratories®: 9K series – Listed by Underwriters Laboratories for use on 3 Hr, A label for single or double swinging doors.
- Quick And Easy Rekeying With Best Interchangeable Cores
- California State Fire Marshal: 9K series – Listed with California State Fire Marshal. 9K series 14 & 15 lever conforms with California Title 24.
- Ansi A156.2 Grade 1
- Backset – 2 3 /4” standard, 3 3 /4” and 5” available.
- Chassis – Critical latch and chassis components are brass or corrosion-treated steel. 2 1 /16” diameter to fit 2 1 /8” hole in door . (Conforms to ANSI A115.2). Lost Motion feature available as an option. (see page 5 for options/features).
- Door thickness – Available for 1 3 /4” to
Finish
Satin Chrome
Backset
2-3/4" Backset
Handing
Reversible
Function
D-Storeroom
Strike
S3 ANSI Strike
Design
15C
Series
9K Series
Case Length
20.5"
Color Code
626/US26D
Hand
Not Handed
Thickness
1-3/4" - 2-1/4"
Grade
Grade 1
Base Material
Brass or Bronze
Strike Width
1-1/4"
Strike Type
ASA
Strike Number
8KS3
Strike Height
4-7/8"
Special Marks
Small format interchangeable core, Fire rated 3 Hours {A}, Complies with ADA accessibility guidelines
Screws
Combination
Rose/Escutcheon Design
C - Rose
Package Qty
1
Lock Face Size
2-1/4" x 1-1/8"
Lever/Knob Design
15 - Lever
Latch Type
Dead Latch (Guarded)
Latch Number
8KL3DL
Latch Backset Dim
2-3/4"
Case Width
12.5"
Case Volume
2242.1875
Case Height
8.75"
Bolt Protection
9/16"
ANSI Function
F86 - Storeroom
Package Width
6.625"
Package Volume
215.3125
Package Length
8.125"
Package Height
4"
BAA Qualified
Yes
Origin
USA
Fire Rated
3 Hours {A}
Cylinder Type
SFIC Prep Less Core
