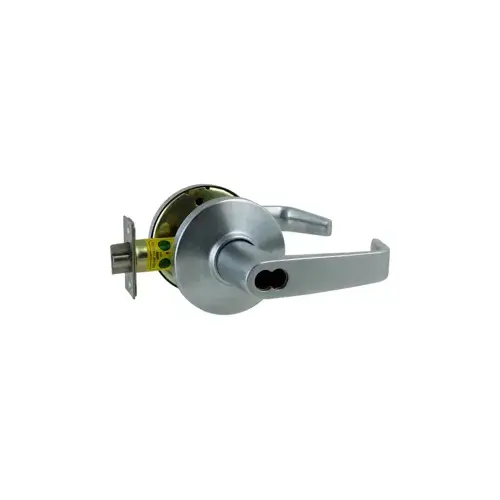

BEST 9K37AB15DS3626 9K Series 2-3/4" Backset 7 Pin Entry 15 Lever and D Rose with ANSI Strike Less Core Satin Chrome Finish
Item #: 9K37AB15DS3626 by BEST
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Built To Tight Tolerances, To Provide The Highest Level Of Mechanical Security And Enhance The Integrity Of The Lock
- ADA–Americans With Disabilities Act: 9K series – The design and operation of the BEST® cylindrical lock meets the intent of the standard for ANSI A117.1 section 404.2.6
- Builders Hardware Manufacturers Association: 9K series – Listed by BHMA for A156.2, Series 4000, Grade 1.
- Strong Through-Bolt Mounting Studs Provide For Great Torque Resistance
- Underwriters Laboratories®: 9K series – Listed by Underwriters Laboratories for use on 3 Hr, A label for single or double swinging doors.
- California State Fire Marshal: 9K series – Listed with California State Fire Marshal. 9K series 14 & 15 lever conforms with California Title 24.
- Strong Retractor Springs Provide Resistance To Lever Sag
- Backset – 2 3 /4” standard, 3 3 /4” and 5” available.
- Chassis – Critical latch and chassis components are brass or corrosion-treated steel. 2 1 /16” diameter to fit 2 1 /8” hole in door . (Conforms to ANSI A115.2). Lost Motion feature available as an option. (see page 5 for options/features).
- Door thickness – Available for 1 3 /4” to
- Quick And Easy Rekeying With Best Interchangeable Cores
- Ansi A156.2 Grade 1
Finish
Satin Chrome
Backset
2-3/4 Inch
Handing
Reversible
Function
AB-Entrance
Strike
ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Design
15D
Series
9K Series
Cylinder Type
7-Pin Housing, Accepts All BEST Cores
Fire Rated
3 Hours {A}
Origin
USA
BAA Qualified
Yes
Package Height
4"
Package Length
8.125"
Package Volume
215.3125
Package Width
6.625"
ANSI Function
F109
Bolt Protection
9/16"
Case Height
8.75"
Case Volume
2242.1875
Case Width
12.5"
Latch Backset Dim
2-3/4"
Latch Number
8KL3DL
Latch Type
Dead Latch (Guarded)
Lever/Knob Design
15 - Lever
Lock Face Size
2-1/4" x 1-1/8"
Package Qty
1
Rose/Escutcheon Design
D - Rose
Screws
Combination
Special Marks
Small format interchangeable core, Fire rated 3 Hours {A}, Complies with ADA accessibility guidelines
Strike Height
4-7/8"
Strike Number
S3
Strike Type
ANSI Curved Lip
Strike Width
1-1/4"
Base Material
Brass or Bronze
Grade
ANSI/BHMA Grade 1
Thickness
1-3/4" - 2-1/4"
Hand
Not Handed
Color Code
626/US26D
Case Length
20.5"
ADA Compliant
YES
Finish Family
Satin Chrome
Lever Style
15-Contour/Angle Return
Strike Size
1-1/4" x 4-7/8"
Rose/Escutcheon Trim
D-Rose
Door Cross Bore
2.125 Inch
Standards
ANSI/BHMA A156.2 Series-Grade 1; UL/cUL Listed; Florida Building Code and Miami Dade County (WS Option) Compliant; California State Fire Marshal (California Title 24); BAA and TAA Compliant; Illinois Accessibility Standard Compliant
Cylinder Type Used
7-Pin SFIC Less Core
Function Description
Pushing and turning button on inside locks outside knob/lever requiring use of a key until button is manually unlocked.
Front Size
1-1/8" x 2-1/4"
Function Family
Entry/Entrance/Office
Strike Lip
1-1/4 Inch
Product Projection
2-3/4 Inch
Trim Material
Plated Zinc Alloy (Lever)
Features
Rose Locking Pin and Rose Assembly Design Offers Great Torque Resistance; it Prevents the Locking Pin From Twisting, Bending, or Breaking Under Attack; Strong Through-Bolt Mounting Studs Increase Torque Resistance
Product Type
Cylindrical Lock
Application
Government; Healthcare; Retail & Commercial; Learning & Higher Education
Warranty
10 Year Mechanical; 3 Year Finish
Handle Type
Lever
Door Thickness
1-3/4" to 2-1/4"
Rose Diameter
3-1/2 Inch
Latch Throw
9/16 Inch
Finish Description
Satin Chrome
Manufacturer Parent
DormaKaba
Lever Length-Inches
5.25 Inch
Knob/Lever Size
5-3/8 Inch
Latch Bolt Material
Solid Brass
Lever Style Family
Straight Return Lever
Sub-Series
CL_Cylindrical_Locks_Best_16
Knob/Lever Style
Lever
Door Thickness Max
2-1/4"
Rose/Escutcheon Style
Rose
Latch Bolt Throw
9/16"
Latch Bolt Face Type
Square Corner
Door Thickness Min
1-3/4"
Lock Category
Cylindrical Lock
Door Bore Size
2-1/8"
Latch Bolt Faceplate Size
2-1/4" x 1-1/4
Rose/Escutcheon Size
3-1/2"
Knob/Lever Design
15
Latch Bolt Type
Deadlatch
Finish code
626
Alternate Part Number-1
151450
Cylinder Included
No
