This CRL 8B Series Square Base Shoe is the same profile as our standard B5S Series, but it is 30% lighter, which means it is more price competitive, environmentally friendly, and will reduce your shipping costs. Designed to work with CRL's patented TAPER-LOC® System, 8B can be easily cut to the required length using a chop saw with a minimum 10" (254 mm) saw blade for aluminum.
Product Warning:
CRL does not recommend direct powder coating of this base shoe extrusion. Powder coated cladding applied over the base shoe is the recommended method.
All pre-drilled CRL Base Shoes have a +1/8 (3 mm)/-1/16 (1.5 mm) tolerance between each hole drilled in the base. Before drilling installation holes in the concrete or steel substrate it is recommended that the installer place the base shoe into the planned final position, then mark the position of the holes to be drilled into the substrate.
Live Chat
24/7 Help Sign in for the Best Experience
Don't have an Account? Create an Account
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

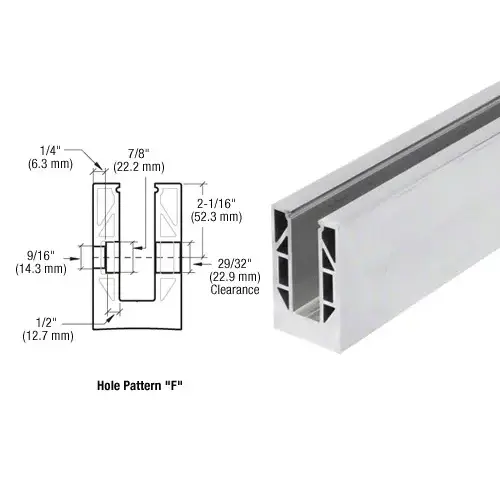

CRL 8B10F 8B Series Mill Aluminum 120" Square Base Shoe Fascia Mount Drilled for 1/2" Glass
Item #: 8B10F by CR Laurence
See reviews See
reviews
In Stock
$630.51
/eachSAVE UP TO 63.05
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- 30% Lighter Than CRL's Traditional B5S Series Shoe
- Designed and Engineered for Guard Rail and Windscreen Applications
- For Use With 1/2" (12 mm) Monolithic Tempered Glass
- 10' and 20' Stock Lengths Available Drilled and Undrilled
- Environmentally Friendly (Green Product)
- Easily Cut to Length Using Your Chop Saw
- CRL Glass Railing Systems Meets NBC Load Requirements When Installed in Accordance to ICC-3269
Size
120" (3.05 m) Long
Length
120
Type
Base Shoe Fascia Mount Drilled
Material
Aluminum
Glazing Thickness
1/2
Profile
Drilled
Glazing Type
Monolithic
Drilling Center to Center
12
Finish/Color
Mill
Finish
Mill
This CRL 8B Series Square Base Shoe is the same profile as our standard B5S Series, but it is 30% lighter, which means it is more price competitive, environmentally friendly, and will reduce your shipping costs. Designed to work with CRL's patented TAPER-LOC® System, 8B can be easily cut to the required length using a chop saw with a minimum 10" (254 mm) saw blade for aluminum.
Product Warning:
CRL does not recommend direct powder coating of this base shoe extrusion. Powder coated cladding applied over the base shoe is the recommended method.
All pre-drilled CRL Base Shoes have a +1/8 (3 mm)/-1/16 (1.5 mm) tolerance between each hole drilled in the base. Before drilling installation holes in the concrete or steel substrate it is recommended that the installer place the base shoe into the planned final position, then mark the position of the holes to be drilled into the substrate.
.
