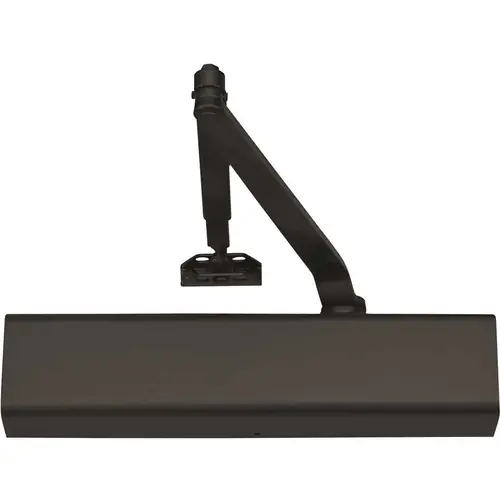

Norton 8501 693 8000 Series Surface Door Closer, Black Painted

Item #: 8501 693 by Norton

UPC #: 840067681510

See reviewsSee reviews
In Stock

$222.58

/each
SAVE UP TO 22.26

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy shell.
  • Closers shall be surface mounted and shall project no more than 2-1/8" from the surface of the door with standard cover.
  • Closers shall be non-handed to permit installation on doors of either hand. Closer fluid shall contain lubricity and anti-oxidation agents.
  • Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
  • Closers shall have multi-size spring power adjustment to permit setting of spring from size 1 through size 6.
  • Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep speed and latch speed.
  • Closers shall have adjustable backcheck intensity controlled by a hex key adjusted valve.
  • [Closers shall have adjustable delayed action closing controlled by a hex key adjustable valve.]
  • Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( + or – 7-1/2% ) power adjustment.

Back Check

Adjustable

Package Volume

333.59375

Color

Black Painted

Case Width

12.75"

Hand

Non-Handed

Grade

ANSI/BHMA Grade 1

Fire Rated

3 Hours {A}

Special Marks

Fire rated 3 Hours {A}

Cover

Plastic

Type

Surface

Application

Offices; Banks; Retail Malls; Hotels; Health Care; Clinics

Case Length

15.75"

Package Qty

1

Package Height

3.5"

Case Height

7.75"

Mounting Location

Push or Pull Side

Package Width

6.25"

Case Volume

1556.296875

Color Code

693

Origin

USA

BAA Qualified

Yes

Mounting Style

Tri Mount

Base Material

VARIES

Package Length

15.25"

Cold Weather Fluid

Yes

Arm Type

Regular Arm

Closer Size

Adj. 1 to 6

Finish

Black Painted

Function

Tri-Packed Non-Hold Open Arm

Series

8501 Series

Spring Size

Adjustable 1-6

Mount

Push or Pull Side

Finish Description

Black

Product Type

Door Closer/Holder/Stop

UNSPSC

31162800

Closer Pinion Diameter

5/8 Inch

Manufacturer Parent

Assa Abloy

Handing

Non-Handed

Closer Piston Diameter

1-1/4 Inch

Closer Arm Type

Regular Arm

Mounting Hole Size

3/4" x 12"

Product Width

2-1/8 Inch

Maximum Door Opening

180°

Sub-Series

DC_Surface Mounted Closers_norton_39

ADA Compliant

YES

Mounting Type

Push or Pull Side

Product Height

2-7/8 Inch

Closer Arm Extension

2-1/8 Inch

Closer Cover

Full Plastic Cover

Function Family

Non Hold Open Door Closer

Standards

Grade 1 - ANSI/BHMA A156.4; UL listed; UL10c

Door Size

32" to 54" (Interior); 30" to 48" (Exterior)

Templating

Full Size Template

Door Thickness

1-3/4 inch

Closer Fluid

NorGlide (R) Closer Fluid

Closer Fluid Temperature Range

Extremely High to as Low as -40° F

Features

Exceeds 25 Million Cycles; Rack and Pinion Design; Staked Valves

Product Material

Cast Aluminum

Fastener Type

Self Drilling Screws

Product Length

13 Inch

Closer Hold-Open

false

Warranty

30 Year Limited Warranty

Finish Family

Black
