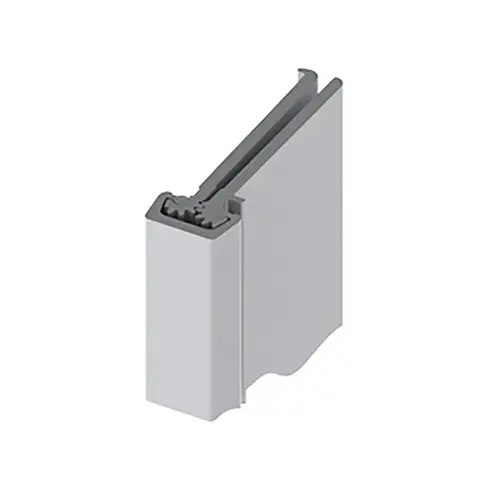

83" Roton Continuous Geared Hinge, Satin Aluminum Clear

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hager 780-224 83 CLR 83" Roton Continuous Geared Hinge, Satin Aluminum Clear

Item #: 780-224 83 CLR by Hager

UPC #: 041359480525

See reviewsSee reviews
In Stock

$160.20

/each
SAVE UP TO 16.02

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • ANSI/BHMA A156.26 C
  • Finishes Brass, stainless steel and steel materials are polished in a range of finishes to meet strict ANSI and BHMA standards.
  • Warranty: Lifetime warranty statements, associated exceptions and limitations are available online at www.hagerco.com. Hager warrants US10B finish only over brass or bronze base material. If steel base material is necessary, Hager recommends US10A lacquer finish.

Height

83 In.

Grade

Grade 1

Application

Hospital X-Ray Room Doors With Double Row of Fasteners to Straddle Lead (Specify "LL")

Weight

Standard Duty

Color

Satin Aluminum Clear Anodized

Color Code

628/US28

Hinge Type

Continuous Full Mortise

Fire Rated

3 Hours Metal, 90 Min. Wood Composite (w/Studs)

Bearing Type

Continuous Gear

Package Qty

1

Restrictions

Oversized

Screw

Drill Quick

Special Marks

Fire rated 3 Hours Metal, 90 Min. Wood Composite (w/Studs)

Base Material

Aluminum

Finish

Satin Aluminum Clear

Finish Description

Satin Aluminum

Product Type

Hinge/Pivot

Series

780 Series

Hinge Size

83 Inch

Product Material

Aluminum 6063-T6

Door Thickness

1.75

Warranty

Lifetime limited

Function

Continuous Hinge

Product Length

83 Inch

ADA Compliant

No

Finish Family

Aluminum

Standards

UL; BHIMA certified

Fastener Size

12-24 X 11/16" Flat Head Self-Drill fasteners; 1/2 Drill-Kwik® fasteners; 1/2 wood fasteners

Hinge Weight

Standard Duty

Hinge Corner

Square Corner

Function Family

Hinge/Pivot

Manufacturer Parent

Hager Companies

Box Dimensions (L x W x H)

4.93x12.18x12.93

Hinge Clearance

5/16" (8 mm) Hinge Side; Plus Standard Lockside Clearance

Sub-Series

HP_Continuous_Hinges_hager_11
