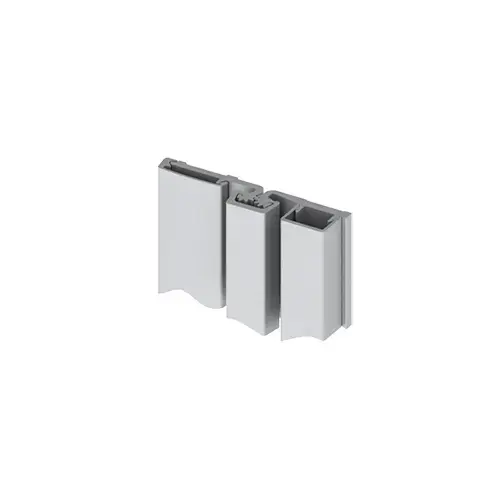

83" 780-157HDFFUL Roton Continuous Geared Hinge, Satin Aluminum Clear

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hager 048059 83" 780-157HDFFUL Roton Continuous Geared Hinge, Satin Aluminum Clear

Item #: 048059 by Hager

UPC #: 041359480594

See reviewsSee reviews
In Stock

$196.84

/each
SAVE UP TO 19.68

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • ANSI/BHMA A156.26 C
  • Finishes Brass, stainless steel and steel materials are polished in a range of finishes to meet strict ANSI and BHMA standards.
  • Warranty: Lifetime warranty statements, associated exceptions and limitations are available online at www.hagerco.com. Hager warrants US10B finish only over brass or bronze base material. If steel base material is necessary, Hager recommends US10A lacquer finish.

Height

83 In.

Grade

Grade 1

Application

Can be Used With Any Door and Frame Material

Weight

Heavy Duty

Color

Satin Aluminum Clear Anodized

Color Code

628/US28

Hinge Type

Continuous Full Mortise

Fire Rated

3 Hours Metal, 90 Min. Wood Composite (w/Studs)

Bearing Type

Continuous Gear

Package Qty

1

Restrictions

Oversized

Special Marks

Fire rated 3 Hours Metal, 90 Min. Wood Composite (w/Studs)

Base Material

Aluminum

Finish

Satin Aluminum Clear

Finish Description

Satin Aluminum

Product Type

Hinge/Pivot

Series

780 Series

Hinge Size

83 Inch

Product Material

Aluminum 6063-T6

Door Thickness

1.75

Fastener Size

1/4-20 x 1-1/4" Sexbolt (fastener + Post); 12-24 X 11/16" Flat Head Self-Drill Fasteners; Drill-Kwik Fasteners and Sex Bolts

Manufacturer Parent

Hager Companies

Hinge Clearance

1/32" Minimum Recommended for Hinge Side; Plus Standard Lockside Clearance

Function

Continuous Hinge

Sub-Series

HP_Continuous_Hinges_hager_7

ADA Compliant

No

Box Dimensions (L x W x H)

4.93x12.18x12.93

Function Family

Hinge/Pivot

Standards

UL; BHIMA certified

Hinge Corner

Square Corner

Product Length

83 Inch

Hinge Weight

Heavy Duty

Warranty

Lifetime limited

Finish Family

Aluminum

Material

Aluminum 6063-T6

Length

79", 83", 85", 95", 119"

Fasteners

  • Standard: 1/4-20 x 1-1/4" Sexbolt (fastener + Post)
  • Standard: Dril-Kwik® – #12-24 X 11/16" Pan Head Screws
  • Additional Options Available upon request

    Notes

    EPD: Roton Continuous Hinges Environmental Product Declaration

    HINGE PACKING AND MISC. - CONTINUOUS

    1 PACK CARTON w/ SCREWS

    HINGE SIZE in. - CONTINUOUS

    83

    HINGE TYPE - CONTINUOUS

    STANDARD

    Door Reinforcement

    None required

    HINGE FINISHES - ROTON

    CLR - CLEAR ETCH ANODIZE

    Frame Reinforcement

    None required to 200 lbs. Heavier weight use 16-gauge channel.
