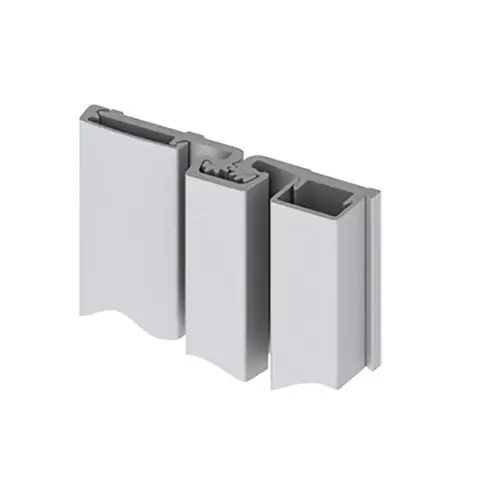

79" Roton Continuous Geared Hinge, Satin Aluminum Clear Anodized

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hager 780-157 79 CLR 79" Roton Continuous Geared Hinge, Satin Aluminum Clear Anodized

Item #: 780-157 79 CLR by Hager

See reviewsSee reviews
In Stock

$210.18

/each
SAVE UP TO 21.02

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • ANSI/BHMA A156.26 C
  • Finishes Brass, stainless steel and steel materials are polished in a range of finishes to meet strict ANSI and BHMA standards.
  • Warranty: Lifetime warranty statements, associated exceptions and limitations are available online at www.hagerco.com. Hager warrants US10B finish only over brass or bronze base material. If steel base material is necessary, Hager recommends US10A lacquer finish.

Height

79 In.

Grade

Grade 1

Application

For Surface Applications Where Frame Face Dimension is Limited

Weight

Standard Duty

Color

Satin Aluminum Clear Anodized

Color Code

628/US28

Hinge Type

Continuous Full Mortise

Fire Rated

3 Hours Metal, 90 Min. Wood Composite (w/Studs)

Bearing Type

Continuous Gear

Package Qty

1

Restrictions

Oversized

Special Marks

Fire rated 3 Hours Metal, 90 Min. Wood Composite (w/Studs)

Base Material

Aluminum

Product Type

Hinge/Pivot

Series

780 Series

Hinge Size

79 Inch

Product Material

Aluminum 6063-T6

Standards

UL; BHIMA certified

Fastener Size

1/4-20 x 1-1/4" Sexbolt (fastener + Post); 12-24 X 11/16" Flat Head Self-Drill Fasteners; Drill-Kwik Fasteners and Sex Bolts

Hinge Weight

Standard Duty

Hinge Corner

Square Corner

Function Family

Hinge/Pivot

Features

Standard Duty for Medium Frequency Doors. Heavy Duty for High Frequency Doors or Heavy, Medium; Frequency Doors; Frame Leaf Alignment Rib for Proper Hinge Location Security Molding; 1/8" (3 Mm) Inset

Finish Description

Satin Aluminum

Product Length

79 Inch

ADA Compliant

No

Finish Family

Aluminum

Warranty

Lifetime limited

Function

Continuous Hinge

Manufacturer Parent

Hager Companies

Hinge Clearance

1/32" Minimum Recommended for Hinge Side; Plus Standard Lockside Clearance

Sub-Series

780-157-79-CLR
