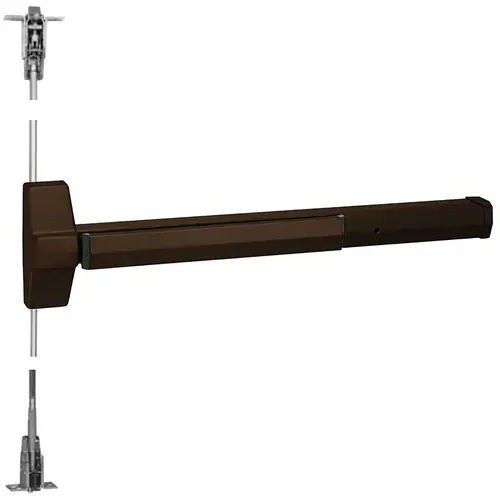

Yale 7160F 24 616 Exit Device Satin Bronze Blackened Satin Relieved Clear Coated

Item #: 7160F 24 616 by Yale

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • touchbar monitor “B” Provides indication of the pushpad being depressed. Used as a Request to Exit switch to shunt alarm systems, release electromagnetic locks or monitor egress.
  • Electrical Specifications: 4 Amps @ 250VAC contacts
  • Listings: UL/cUL listed for panic and fire exit hardware.
  • Applications: Rim: 7100(F), 7200, 7200M(F) SquareBolt®: 7150(F), 7250, 7250M(F) SVR: 7110(F), 7170(F), 7210, 7210M(F) CVR: 7120(F), 7160(F), 7220, 7220M(F) Mortise: 7130(F)
  • Ordering: Suffix “B” to the Model

Color

Satin Bronze Blackened Satin Relieved Clear Coated

Physical Appearance

Wide Stile Pushpad

Fire Rated

Variable, Yes

Special Marks

Fire rated Variable

Device Type

Concealed Vertical Rod

Package Qty

1

Includes Trim

No

Device Length

24 In.

Color Code

616/US11

Product Overview

CVR Exit Device, 24", Fire Rated, Antique Bronze

Yale 7000 Series Exit Devices deliver an unparalleled combination of durability, innovation and aesthetics. With ANSI/BHMA Grade 1 certification and a full range of mechanical and electromechanical functions and accessories, the 7000 Series can be easily integrated into existing security or fire alarm systems to ensure the safety of every opening. The simple, clean lines and variety of available finishes suit the modern decor of any commercial building.

Steel chassis and heavy-duty components for superior strength.

The 7000 Series has a clean, modern, sleek design that has serveral high-quality achitectural finishes. These finishes deliver consistency and durability.
