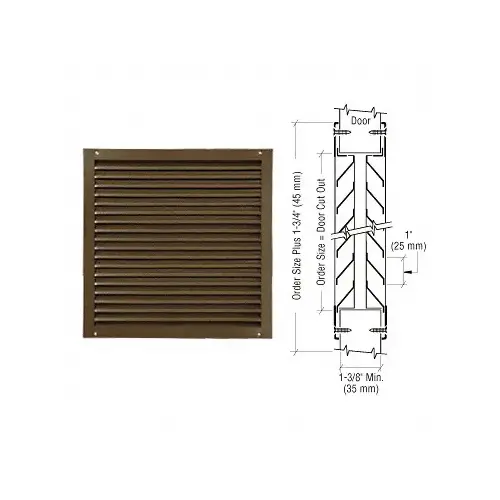

CRL's 700A Series Door Louvers have a two-piece design for wood or metal doors with a minimum thickness of 1-3/8" (35 mm). Constructed from 18 gauge CRS, 700A Series Louvers have a minimum frame size of 6" x 4" (152 x 102 mm) and a maximum size of 48" x 80" (1.22 x 2.03 m). The two rows of inverted 'Y' blades are spaced at 1" (25 mm) intervals and attached by interlocking construction to the 3/4" (19 mm) deep welded frame that is screwed into the door on both sides. Custom sizes and finishes are also available.
CRL 700A Series Door Louvers can have a variety of screen wires placed underneath of either panel to prevent unwanted pests from entering through the Louvers. Common 18 x 16 mesh aluminum screen wire is recommended to keep out small insects. These are available only on special order.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL 700A24X24 700A Series 24" x 24" Door Louver Bronze
Item #: 700A24X24 by CR Laurence
See reviewsSee reviews
HURRY! Low in stock
$407.52
/eachSAVE UP TO 40.75
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 50% Free Flow Area
- Bronze Powder Coat Finish
- Non-Vision Inverted Split 'Y' Blades
Free Flow Area
288 Square Inches
Size
24" x 24" (610 x 610 mm)
Size W x H
24" x 24" (610 x 610 mm)
Height
24
Finish
Bronze
Material
Steel
Width
24
Door Thickness
1-3/8
Material Gauge
18
Finish/Color
Bronze
Series
700
Blade Space (Inches)
1
Blade Space
1 in. (25 mm)
Product Overview
CRL's 700A Series Door Louvers have a two-piece design for wood or metal doors with a minimum thickness of 1-3/8" (35 mm). Constructed from 18 gauge CRS, 700A Series Louvers have a minimum frame size of 6" x 4" (152 x 102 mm) and a maximum size of 48" x 80" (1.22 x 2.03 m). The two rows of inverted 'Y' blades are spaced at 1" (25 mm) intervals and attached by interlocking construction to the 3/4" (19 mm) deep welded frame that is screwed into the door on both sides. Custom sizes and finishes are also available.
CRL 700A Series Door Louvers can have a variety of screen wires placed underneath of either panel to prevent unwanted pests from entering through the Louvers. Common 18 x 16 mesh aluminum screen wire is recommended to keep out small insects. These are available only on special order.
