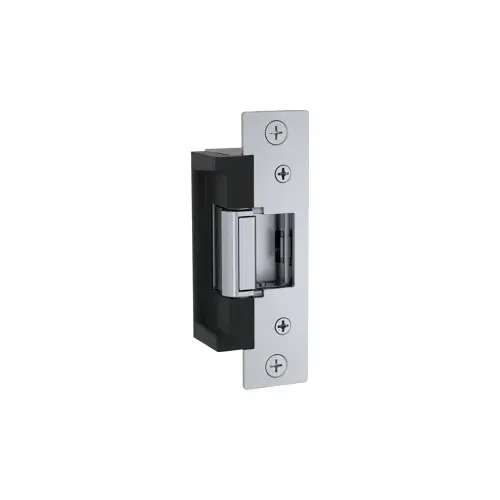

HES 7000C 630 7000 Series Electric Strike Satin Stainless Steel
Item #: 7000C 630 by HES
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- UL 1034, burglary-resistant listed
- ANSI/BHMA A156.31, Grade 1 (791 and 792 options)
- ANSI/BHMA A156.31, Grade 2 (783S, 786S and 789S options)
- MEA New York City accepted
- Patent #5,484,180
Use With
Cylindrical Locks
Amp Draw
.45 Amps @ 12VDC, .25 Amps @ 24VDC
Color
Satin Stainless Steel
Keeper Size
1/2 In.
Faceplate Size
4-7/8 In. X 1-1/4 In. and 7-15/16 In. X 1-7/16 In.
Function
Electric Strike
Grade
Grade 1
Fire Rated
No
Configuration
Centered
Operating Voltage
12/24VDC
Pre-Load
15 lbs
Package Qty
1
Color Code
630
Origin
USA
BAA Qualified
Yes
Switch Type
None
Faceplate Shape
Flat Face, Square Corners
Frame Application
Metal or Wood
Finish
Satin Stainless Steel
Finish Description
Satin Stainless Steel
Product Type
Electric Strike
Series
7000C Series
Warranty
SecuriCare 5 Year
Aluminium Bottle Contents
Swinging
ProductType
Manual
Voltage
24 VDC
Mounting Type
Surface Mount
For Use With
Cylindrical Latchbolts Up to 5/8" Throw and Rim Exit Devices Up to a 3/4" Throw
Application
Aluminum, Metal and Wood Frame
Strength
1500 (Static); 70 (Dynamic) lb; ft-lb
Current Draw
450mA; 250mA
Latch Throw
3/4 Inch; 5/8 Inch
Product Height
1-11/16 Inch
Product Length
4-7/8 Inch
ADA Compliant
No
Finish Family
Stainless Steel
Included Components
Trim Enhancer; 791 and 792 Faceplates
Product Material
Stainless steel
Standards
ANSI/BHMA A156.31, Grade 1; UL 1034 Listed; UL 294 Listed
Faceplate Dimension
4-7/8" x 1-1/4"; 7-15/16" x 1-7/16"
Function Family
Electric Strike
Strike Lip
1-11/16 Inch
Features
Tamper Resistant; Endurance 1 Million Cycles; Accommodates Preload Up to 15 lb; Horizontal Adjustment; Non-Handed; Internally Mounted Solenoid; Plug-in Connector; Burglary Rated
Lip Extension
1-1/8 Inch
Manufacturer Parent
Assa Abloy
Sub-Series
7000C-630
Handing
Non-Handed
Alternate Part Number-1
148918
Throw
3/4", 5/8"
Lockset Type
Cylindrical, Rim Exits
Fail Status
Fail Secure, Field Selectable
Product Overview
7000 SeriesElectric Strike
Works with cylindrical latchbolts up to 5/8" throw and rim exit devices up to a 3/4" throw
The dual, preload solution for cylindrical latchbolts and rim exit devices.
The HES 7000 Series Electric Strike offers two solutions to address preloaded doors. The in-frame adjustable feature allows the installer to easily adjust the electric strike opening to accommodate the horizontal position of the latchbolt after installation.
The preload release function allows the electric strike to operate smoothly throughout the year under varying loads on the door caused by air conditioning pressure, changes in the weather, warped doors or doors with weather stripping that may often bind standard electric strikes. This unit accommodates cylindrical latchbolts up to 5/8" throw and rim exit latchbolts up to 3/4" throw.
Features:- Stainless steel construction
- Tamper resistant
- Static strength 1,500 lbs
- (791 and 792 options)
- Dynamic strength 70 ft-lbs
- (791 and 792 options)
- Static strength 1,000 lbs
- (783S, 786S, and 789S options)
- Dynamic strength 50 ft-lbs
- (783S, 786S, and 789S options)
- Endurance 1 million cycles
- Field selectable fail safe/fail secure
- Accommodates preload
- (up to 15 lbs: fail secure only)
- Horizontal adjustment
- Non-handed
- Internally mounted solenoid
- Strike body depth 1-11/16" [42.9mm]
- Plug-in connector
- Trim enhancer
- (791 and 792 options)
- Pocket adapter
- (786S and 789S options)
- SecuriCare five-year, no-fault, no questions asked warranty
- (Addition of HES SMART Pac® III extends the warranty to 10 years)
- ANSI/BHMA A156.31, Grade 1
- (791 & 792 options)
- ANSI/BHMA A156.31, Grade 2
- (783S, 786S & 789S options)
- UL 1034 burglary-resistant listed
- UL 294 listed
- Metal
- Wood
- Aluminum
- Dual voltage 12/24 VDC
- 450 mA at 12 VDC/250 mA at 24 VDC
- 630 - Satin stainless steel
- 605 - Bright brass
- 606 - Satin brass
- 612 - Satin bronze
- 613E - Dark oxidized satin bronze
- 629 - Bright stainless steel
- BLK - Black
