7" Gravity Coordinator Arm Satin Chrome Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

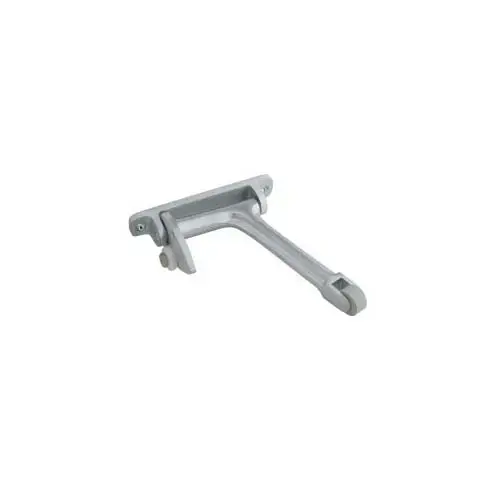

H.B. Ives COR7G US26D 7" Gravity Coordinator Arm Satin Chrome Finish

Item #: COR7G US26D by IVES

UPC #: 400654016110

See reviewsSee reviews
In Stock

$78.33

/each
SAVE UP TO 7.83

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Part of the Schlage Family of Products
  • All Mounting Hardware Included
  • Made with Durable Materials
  • Easy Installation
  • Limited 1 Year Warranty

Finish

Satin Chrome

Handing

Non Handed

Series

Parts/Accessories

Color Code

626/US26D

Package Qty

1

Base Material

Brass or Bronze

Finish Description

Satin Chrome

Product Type

Door Accessory

UNSPSC

31162800

Warranty

1 Year From Date of Purchase.

Aluminium Bottle Contents

Swinging

ProductType

Manual

Alternate Part Number-1

173825

ADA Compliant

No

Finish Family

Satin Chrome

Included Components

8-32 X 1" FPHMS

Product Material

Forged Brass

Standards

Meets ANSI/BHMA A156.3 Type 21B; UL Listed for Fire Doors

Product Projection

7 Inch

Features

Gravity Action Arm and Door Bracket are Adjustable on the Job for Ease of Installation; Nylon Roller on Short Arm Glides Smoothly Over Door Bracket and Strike, Ensuring Silent Operation

Application

Pairs of Doors With Astragal on Active Door Up to 4ft or With Astragal on Inactive Door Up to 3ft4" or With Astragal on Both Doors Up to 2ft10"

Function

Door Coordinator

Manufacturer Parent

Allegion

Sub-Series

DTA_Flush_Bolts_and_Coordinators_ives_06

Product Overview
CORDoor CoordinatorFeatures:
  • The COR Series coordinators are designed for use on pairs of doors when one door needs to close before the other
  • All COR units function easily. The active door lever, located nearest to the active stop, holds the active door open until the trigger mechanism is released by the closing of the inactive leaf.
  • All COR units do not function correctly with swingclear hinges. Consult factory when used with 3/4" offset pivots.
  • All COR units are equipped with an adjustable override feature which allows the active door to close under extreme pressure.
  • All COR units are compatible with flush bolts.
  • For openings where doors are unequal size. The coordinator length should equal the active door width plus approximately 1/2 the inactive door width. The coordinator must be 6" longer than the active door width and shorter than the overall frame opening between stops.
  • The COR Series does not cover the entire length of the stop, so a FL filler bar can be provided to maintain architecturally clean lines.
Certifications:
  • Meets ANSI A156.3 Type 21A
  • UL Listed for installation on labeled frame
  • Aluminum 6000 Series
Available Options:
  • Optional filler bars: FL20 - 20", FL32 - 32" and FL44 - 44", available to maintain clean line.
  • Security pin screws
  • Special prep cut-outs
Available Accessory Items:
  • Optional mounting brackets available: MB1, MB2, MB1F, MB2F, MB3F, MB1V, MB2V and MB3V for other stop applied hardware.
  • Security pin screws
  • Replacement mounting package
  • Replacement rub plate package
Finishes:
  • 628 - Satin Aluminum, Clear Anodized
  • 711 - Black Anodized
  • 713 - Satin Chrome
