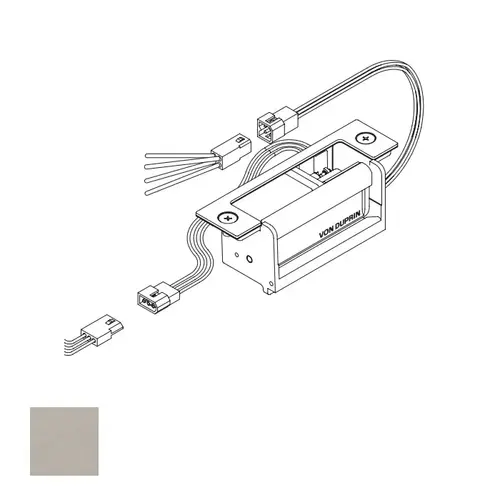

Von Duprin 6400 US32D Fail Secure 12V / 24V DC Electric Strike, Satin Stainless Steel Finish
Item #: 6400 US32D by Von Duprin
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Built to Last with Heavy Duty Materials
- Modular design fits cylindrical and nearly any mortise lock
- Most Von Duprin Parts Are Made For a Specific Finish
- Heavy-duty stainless steel construction in BHMA 630 satin finish
- Non Handed
- Vertical adjustments allow for alignment with a wide variety of mortise locks with offset latches
- Horizontal adjustment of up to 1⁄8” improves fit on tight door preps § Can accommodate up to 1” deadbolt (for night latch only)
- Most Von Duprin Parts Are Made For a Specific Series
- Limited 5 Year Mechanical and 1 Year Electrical Warranty
- Field selectable voltage 12 or 24VDC and 12 to 24VAC
- Plug-in voltage connectors are included for ease of installation and removal during strike servicing
- Optional plug-in latchbolt monitor can be added in the field
- Non-handed, unique internal solenoid design prevents keeper from heating up
- Low current draw (0.19 amps @ 24 VDC)
- Suitable for interior and exterior doors
- 3-hour fire-rated to UL 10C (fail secure only)
- UL 1034 listed for burglary-resistant electric door strikes
- Meets ANSI/BHMA A156.31, Grade 1 for endurance and dynamic strength
- Meets ANSI/BHMA A156.31, Grade 1, 1500 lbs static strength § Dynamic strength 70 ft-lbs
- Endurance 2,000,000 cycles
Material
Stainless Steel
Approved for Commercial Use
Yes
Product Class
Residential
UL Listed
Yes
BHMA Certification
Grade 1
Height
4.875
Voltage
12, 24
Configuration
Universal
Width
1.25
Fire Rated
Yes
exit device type
Rim Device
ANSI Certification
A156.31
Depth
1.75
Collection
6400 Series
Use With
Cylindrical and Mortise Locks
Color
Satin Stainless Steel
Color Code
630/US32D
Function
Field Selectable (Safe/Secure)
Package Height
2.375"
Package Length
9.875"
Package Volume
64.49609375
Package Width
2.75"
Amp Draw
375mA at 12VDC, 190mA at 24VDC
ANSI Number
0
Faceplate Shape
Flat Face, Square Corners
Faceplate Size
4-7/8 In. X 1-1/4 In.
Frame Application
Metal, Aluminum or Wood
Frame Depth
1-3/4 In.
Keeper Size
3/4 In.
Operating Voltage
12VDC/24VDC
Package Qty
1
Product Height
0.75"
Product Length
9"
Product Width
1.75"
Base Material
Stainless Steel
Switch Type
None
Product Type
Electric Strikes
Manufacturer Parent
Allegion
Finish Description
Satin Stainless Steel
For Use With
Cylindrical and Nearly Any Mortise Lock
Faceplate Dimension
1-1/4" x 4-7/8"
Latch Throw
3/4 Inch
Sub-Series
6400-32D
ADA Compliant
No
Application
Interior or Exterior Doors With Hollow Metal, Aluminum, or Wood Frames
Function Family
Electric Strike
Standards
UL 1034 Listed; 3-Hour Fire-Rated to UL 10C; UL 294 Listed
Electric Options
Latchbolt Monitor
Features
Vertical Adjustments; Horizontal Adjustment of Up to 1/8"; Optional Plug-in Latchbolt Monitor can be Added in the Field; Non-Handed; Unique Internal Solenoid Design Prevents Keeper From Heating Up
Product Material
Heavy-Duty Stainless Steel
Strength
1500 (Static); 70 (Dynamic) lb; ft-lb
Current Draw
0.375A at 12VDC; 0.190A at 24VDC; 0.280 - 0.565 at 12-24VAC
Series
6400 Series
Included Components
Plug-in Voltage Connectors
Finish Family
Stainless Steel
