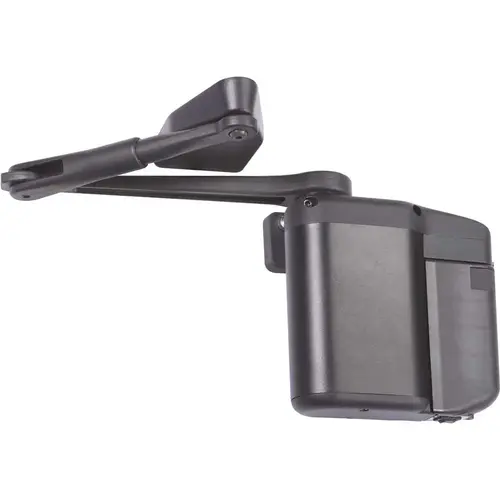

Norton 5845xNPBx689 5800 Series ADAEZ Operator Satin Chrome

5800 Series ADAEZ®Low Energy Operator

As one of the world’s only regenerative power door operators, Norton’s 5800 Series ADAEZ is certified by GreenCircle® to reduce energy consumption by as much as 100 percent versus other comparable operators. Available in wireless and plug-in versions and able to fit in the tightest of spaces, the 5800 ADAEZ is simple to install and use.

How It Works

How does the 5800 Series PRO work without electrical power?

The 5800 Series Pro is an extreme duty, low energy operator designed for moderate to high traffic manual opening applications that occasionally requires powered operation. A regenerative drive system charges an onboard battery pack eliminating the need for electrical power.

The 80/25 guidelines should be applied when ordering this operator. It is recommended that the 5800 Series Pro be used on a door that gets approximately 80 manual cycles or more per day and is used 25% or less automatically.

When applied using the 80/25 guideline this operator will self generate all the power it needs to keep its field replaceable, onboard, battery pack charged for up to 12 years and in some cases longer.

A fully charged battery has the capability to open a door up to 2000 times in a row, generously allowing for periodic fluctuations from 80/25 guidelines with little impact on the product’s overall usability. Example: 30% automatic use for one day is not a problem, as long as that level of automatic use is not sustained.

The 5800 Series PRO can be used outside of the 80/25 parameters. Simply plug the unit into a common 110 VAC electrical outlet using our ADA1015P Hardwire Kit option. The Hardwire Kit is a low voltage plug in transformer and can be added to existing installed field units.

• Regenerative drive or continuous duty operation

• Non-handed

• 95° door opening

• Push and Pull Side Mounting

• Radio Frequency stainless steel push buttons

• Integral RF receiver

• Shock absorbing arm

• 24VDC input port

• ADA1015P hardware kit

• Auxiliary activation input port

• Patented Auto-Tune feature

• 2 year limited warranty

Functions / Description: Adjustable Hold Open:

• Amount of time a door will stay in the full open position after an activation

Dynamic Braking:

• Braking or slowing of the door if excessive door speed occurs resulting from a wind load or an abusive open condition

Emergency Interface Relay*:

• Door closes and ignores any activation input until signal is discontinued

Executive Mode Feature:

• When door receives activation signal it opens and remains open until either a second signal is received or door is manually moved in closing direction

Latch Assist:

• At closed position, after an activation, the door is pulled in
• After the door has closed, the door is pulled in to assist with latch release/engagement

Obstruction Detection:

• Open - door closes if it hits an obstruction while opening
• Close (Stop on Stall) - door will stop once it hits an obstruction and will rest against the obstruction until obstruction is removed

On/Off Switch:

• Disables operator activation

Open Delay*:

• Delays operator opening for locking hardware

Outside Push Button Disable*:

• When contact is closed, outside push button is disabled

Power Close:

• Additional force to assist door closing between 90° and 70° and 10° and 0°

Push & Go:

• As the door is manually opened, the operator "senses" movement and opens door to the full-open position

Single Relay Output*:

• Closes to indicate a valid activation

• *Only available with Wireless Interface Module (WIM)

ADAEZ PRO COMPLETE: MODEL 5845 (PUSH AND PULL):

• Bundles all the configurations of the PRO and PRO PLUS models into one easy to stock package

• Right or left hand doors

• Push and pull side mounting hardware

• Black and aluminum finish covers

• Mounting hardware for virtually any door and frame

• 24VDC plug-in transformer kit for continuous automatic use applications

Certifications:

• ANSI/BHMA A156.19 certified

• ETL tested to UL/cUL 325 standard for automatic operators

• Complies with requirements for Americans with Disabilities Act (ADA)

• UL10c 90-minute positive pressure fire rating

• Manufactured in an ISO 9001 and ISO 14001 certified facility

• Verified by GreenCircle to offer these energy savings as compared to similar products:
• 5800 Series ADAEZ® (plug-in) – 91% efficiency
• 5800 Series ADAEZ® (wireless) – 100% efficiency
