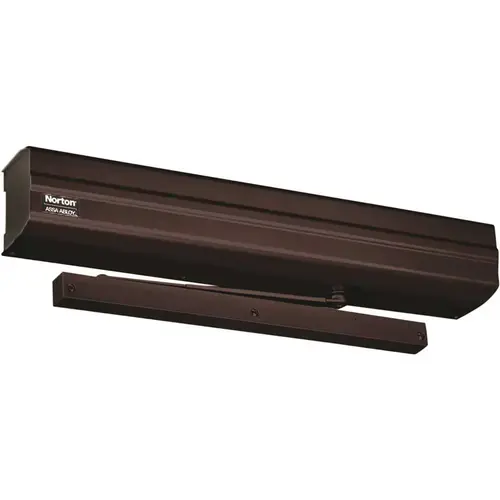

Norton 5740 690 5700 Series Low Energy Operator, Dark Bronze Painted
Item #: 5740 690 by Norton
UPC #: 840067662342
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Door Controls (interior) (exterior) swinging door(s) shall be of rack and pinion design contained within a precision cast aluminum housing.
- Door closing force shall be adjustable to ensure adequate closing control.
- Door closing speed shall be controlled by independent hydraulic adjustment valves in the sweep and latch range of the closing cycle.
- Door Operator shall provide conventional door closer opening forces unless the power operator motor is activated.
- Door Operator shall provide conventional door closing forces at all times except in the event of power outage during powered door open cycle.
- Door Operator opening force and speed shall be adjustable by independent electronic adjustment to ensure adequate opening control per accessibility codes.
- Door Operator shall have an adjustable hydraulic backcheck valve to cushion the door speed if door is opened violently.
- Door Operator shall have a manual adjustment to locate both full open and full closed door positions.
- Maximum door open shall be adjustable and capable to a maximum 180° conditions permitting. [(Door Operator shall be SELECTIVELY ACTIVATED by external initiating device, i.e., wall switch, etc.)]
- Door operator shall have adjustable hold open time capability in range from 5 to 30 seconds.
- Door operator shall have input line rating of 120VAC, .6A or 240VAC, .3A.
- Units shall have relay contact for interfacing products having a contact rating of 30VDC at 1A or 125VAC at .5A.
- Unit shall have an external On/Off Switch to defeat powered opening when desired.
- Unit shall have an internal circuit breaker switch to interrupt input power for servicing.
- Unit shall be U.L. Listed for automatic closing door.
- Unit shall be in compliance with the requirements of the Americans With Disabilities Act (ADA), ANSI standards A117.1 and A156.19.
- Unit shall meet C-UL US.
Package Volume
2220.75
Color
Dark Bronze Painted
Hand
Non-Handed
Fire Rated
3 Hours {A}
Special Marks
Fire rated 3 Hours {A}
Type
Surface
Application
Universal Mount, Push or Pull
Package Qty
1
Package Height
7"
Door Size
29" Minimum
Mounting Location
Push or Pull Side
Package Width
9"
Reveal Size
2-5/8" to 6-3/4"
Color Code
690/US20
Origin
USA
BAA Qualified
Yes
Mounting Style
Slide Track or Top Jamb
Base Material
VARIES
Package Length
35.25"
Cold Weather Fluid
Yes
Arm Type
Slide Track Arm Standard and Double Lever Arm Regular
Finish
Dark Bronze Painted
Finish Description
Dark Bronze Painted
Function
Push or Pull Side Operator
Mount
Push or Pull Side
Product Type
Door Operator
Series
5700 Series
Warranty
2 Year Limited Warranty
Pack Size
1
Healthy Solution
Touchless
UNSPSC
30171514
ADA Compliant
YES
Finish Family
Dark Bronze
Power Input
120VAC
Standards
C-UL US listed; ANSI/BHMA A156.19; ANSI/BHMA A156.4
Closer Arm Type
Push or Pull Side Arms
Function Family
Power Door Operator
For Door Width
28" to 48"
Features
Adjustable Door Sensitivity; Door can be Opened Manually if Desired; Spring Force Provides the Feel of a Manual Door Closer
Power Output
24VDC
Mounting Type
Push or Pull Side
Spring Size
1-6
Manufacturer Parent
Assa Abloy
Minimum Door Width
28 Inch
SPDT Relay Output
0.9A
healthy_solution
Touchless
Sub-Series
DC_Power_Operators_norton_3
Current Draw
0.6A
Alternate Part Number-1
194826
Product Overview
5700 SeriesLow Energy Operator
A reliable ADA solution comprising Norton's heavy-duty 1601 door closer. The use of a hydraulic closer ensures quiet and consistently smooth operation, ideal in applications where doors are typically operated manually but can also be activated via wall switches for automatic operation. The 5700 offers basic automated door functions and is designed for quick set-up, making it easy to specify and install.
Features:- Non-handed
- Push or pull side mounting
- Comprises heavy-duty Norton 1601 door closer
- Optional kit includes push buttons and plug-in power cord
- Operates as mechanical surface close during close cycles, when door is opened manually or if power is off
- Spring force provides the feel of a manual door closer
- Door can be opened manually if desired
- Adjustable spring power
- Backcheck valve
- Sweep valve & latch valve
- Unit activation options:
- Wall switches
- Radio frequency device
- End-user on/off switch
- Adjustable door sensitivity
- Onboard power supply for accessories: 24VDC (1.1A)
- Basic features simplify product choice
- Designed for quick installation, setup and adjustments
- Hydraulic closer offers quiet and smooth operation
- United States: 5,881,497, 7,316,096 and 7,484,333
- Canada: 2,568,877
- Amount of time a door will stay in the full open position after an activation
- Motor stops if door is obstructed during opening; door closes
- Disables operator activation
- Delays operator opening for locking hardware
- After 2 minutes of receiving a door activation signal, inverter times out and door closes
- Prevents motor/inverter damage
- Power input; 120 VAC, 60Hz
- Relay output: SPDT
- Normally open/normally closed (jumper)
- For electric strike function
- ANSI/BHMA A156.19 certified
- Meets ANSI/BHMA A156.4 requirements
- UL / cUL listed for use on fire rated doors
- UL10C listed for positive pressure fire test
- Manufactured in an ISO 9001 and ISO 14001 certified facility
- Complies with requirements for the Americans with Disabilities Act (A.D.A)
