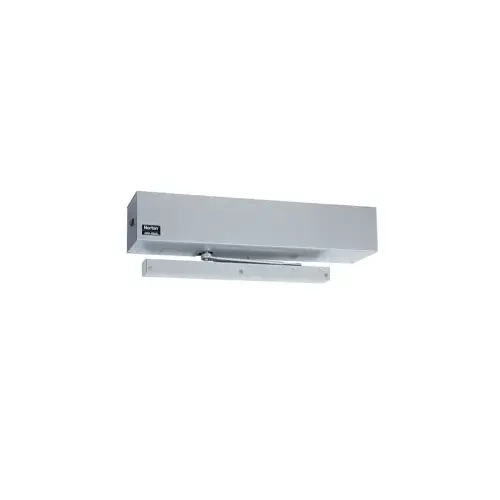

ADA Low Energy Operator, Moderate Duty, Push/Pull Side, 120 VAC Input, 24VDC Onboard Power Supply, UL, 689/SP28 Aluminum Powder Coat

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Norton 5740 689Click To Copy ADA Low Energy Operator, Moderate Duty, Push/Pull Side, 120 VAC Input, 24VDC Onboard Power Supply, UL, 689/SP28 Aluminum Powder Coat

Item #: 5740 689 by Norton

UPC #: 840067662335

See reviewsSee reviews
See reviews summary
In Stock

$2,488.24

/each
SAVE UP TO 248.82

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 30 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Door Controls (interior) (exterior) swinging door(s) shall be of rack and pinion design contained within a precision cast aluminum housing.
  • Door closing force shall be adjustable to ensure adequate closing control.
  • Door closing speed shall be controlled by independent hydraulic adjustment valves in the sweep and latch range of the closing cycle.
  • Door Operator shall provide conventional door closer opening forces unless the power operator motor is activated.
  • Door Operator shall provide conventional door closing forces at all times except in the event of power outage during powered door open cycle.
  • Door Operator opening force and speed shall be adjustable by independent electronic adjustment to ensure adequate opening control per accessibility codes.
  • Door Operator shall have an adjustable hydraulic backcheck valve to cushion the door speed if door is opened violently.
  • Door Operator shall have a manual adjustment to locate both full open and full closed door positions.
  • Maximum door open shall be adjustable and capable to a maximum 180° conditions permitting. [(Door Operator shall be SELECTIVELY ACTIVATED by external initiating device, i.e., wall switch, etc.)]
  • Door operator shall have adjustable hold open time capability in range from 5 to 30 seconds.
  • Door operator shall have input line rating of 120VAC, .6A or 240VAC, .3A.
  • Units shall have relay contact for interfacing products having a contact rating of 30VDC at 1A or 125VAC at .5A.
  • Unit shall have an external On/Off Switch to defeat powered opening when desired.
  • Unit shall have an internal circuit breaker switch to interrupt input power for servicing.
  • Unit shall be U.L. Listed for automatic closing door.
  • Unit shall be in compliance with the requirements of the Americans With Disabilities Act (ADA), ANSI standards A117.1 and A156.19.
  • Unit shall meet C-UL US.

Special Marks

Fire rated 3 Hours {A}

Fire Rated

3 Hours {A}

Hand

Non-Handed

Color

Aluminum Painted

Package Volume

2220.75

Arm Type

Slide Track Arm Standard and Double Lever Arm Regular

Cold Weather Fluid

Yes

Package Length

35.25"

Base Material

VARIES

Mounting Style

Slide Track or Top Jamb

BAA Qualified

Yes

Origin

USA

Color Code

689/US28

Reveal Size

2-5/8" to 6-3/4"

Package Width

9"

Mounting Location

Push or Pull Side

Door Size

29" Minimum

Package Height

7"

Package Qty

1

Application

Universal Mount, Push or Pull

Type

Surface

Finish

Aluminum Painted

Series

5700 Series

Finish Description

Aluminum Painted

Function

Push or Pull Side Operator

Mount

Push or Pull Side

Product Type

Door Operator

Warranty

2 Year Limited Warranty

Pack Size

1

Healthy Solution

Touchless

UNSPSC

30171514

ADA Compliant

YES

Finish Family

Aluminum

Power Input

120VAC

Standards

C-UL US listed; ANSI/BHMA A156.19; ANSI/BHMA A156.4

Closer Arm Type

Push or Pull Side Arms

Function Family

Power Door Operator

For Door Width

28" to 48"

Features

Adjustable Door Sensitivity; Door can be Opened Manually if Desired; Spring Force Provides the Feel of a Manual Door Closer

Power Output

24VDC

Mounting Type

Push or Pull Side

Spring Size

1-6

Manufacturer Parent

Assa Abloy

Minimum Door Width

28 Inch

SPDT Relay Output

0.9A

healthy_solution

Touchless

Sub-Series

DC_Power_Operators_norton_3

Current Draw

0.6A

Alternate Part Number-1

141439

Height

7.25

Length

35.13

Width

8.38

Product Overview
5700 SeriesLow Energy Operator

A reliable ADA solution comprising Norton's heavy-duty 1601 door closer. The use of a hydraulic closer ensures quiet and consistently smooth operation, ideal in applications where doors are typically operated manually but can also be activated via wall switches for automatic operation. The 5700 offers basic automated door functions and is designed for quick set-up, making it easy to specify and install.

Features:
  • Non-handed
  • Push or pull side mounting
  • Comprises heavy-duty Norton 1601 door closer
  • Optional kit includes push buttons and plug-in power cord
  • Operates as mechanical surface close during close cycles, when door is opened manually or if power is off
  • Spring force provides the feel of a manual door closer
  • Door can be opened manually if desired
  • Adjustable spring power
  • Backcheck valve
  • Sweep valve & latch valve
  • Unit activation options:
  • Wall switches
  • Radio frequency device
  • End-user on/off switch
  • Adjustable door sensitivity
  • Onboard power supply for accessories: 24VDC (1.1A)
Benefits:
  • Basic features simplify product choice
  • Designed for quick installation, setup and adjustments
  • Hydraulic closer offers quiet and smooth operation
Patents:
  • United States: 5,881,497, 7,316,096 and 7,484,333
  • Canada: 2,568,877
Functions: Adjustable Hold Open:
  • Amount of time a door will stay in the full open position after an activation
Obstruction Detection:
  • Motor stops if door is obstructed during opening; door closes
On/Off Switch:
  • Disables operator activation
Open Delay:
  • Delays operator opening for locking hardware
Overload Safety Shut-Off:
  • After 2 minutes of receiving a door activation signal, inverter times out and door closes
  • Prevents motor/inverter damage
Electrical Data:
  • Power input; 120 VAC, 60Hz
  • Relay output: SPDT
  • Normally open/normally closed (jumper)
  • For electric strike function
Certification:
  • ANSI/BHMA A156.19 certified
  • Meets ANSI/BHMA A156.4 requirements
  • UL / cUL listed for use on fire rated doors
  • UL10C listed for positive pressure fire test
  • Manufactured in an ISO 9001 and ISO 14001 certified facility
  • Complies with requirements for the Americans with Disabilities Act (A.D.A)
