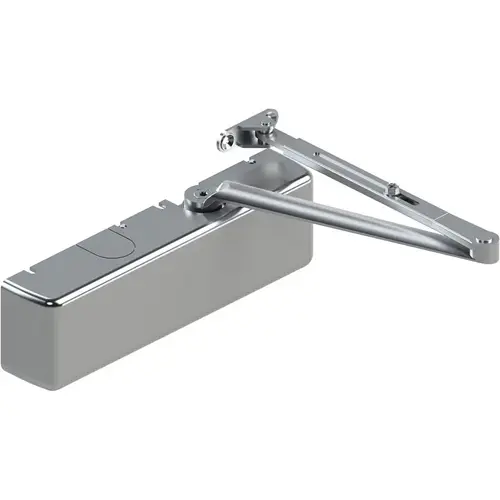

Hager 126470 5100 MLT 1-6 ALM Size 1-6 Grade 1 Non-Hold Open Door Closer - Aluminum
Item #: 126470 by Hager
UPC #: 798550264705
11 reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Color
Aluminum Painted
Type
Surface
Mounting Location
Push or Pull Side
Color Code
689/US28
Mounting Style
Tri Mount
Closer Size
1-6
Finish
Satin Aluminum
Grade
ANSI/BHMA Grade 1
Spring Size
Adjustable 1-6
Function
Tri-Packed Non-Hold Open Arm
Mount
Push or Pull Side
Finish Description
Aluminum Painted
Product Type
Door Closer/Holder/Stop
Series
5100 Series
Door Thickness
- 1-3/4" (44 mm) - standard
- 1-3/8" - 2-1/4" (36 mm - 57 mm) thick door - optional
Product Material
Cast Iron; Steel (Piston); Steel (Spindle)
Material
Cast iron, treated with rust inhibiting primer - standard
Warranty
Lifetime Warranty
Certifications
BHMA Certified ANSI A156.4, adjustable sizes 1-6ADA compliant ANSI A117.1 Accessibility CodeUL/cUL Listed for up to 3 hoursUL10C Positive Pressure RatedUL10B Neutral Pressure Rated5100 Door Closer EPD
Manufacturer Parent
Hager Companies
Handing
Non-Handed
Closer Arm Type
Regular With Parallel Arm Shoe
Product Width
2-1/4 Inch
Maximum Door Opening
120°
Hand
Non-Handed
Sub-Series
DC_Surface Mounted Closers_corbin_hager_2
ADA Compliant
YES
Mounting Type
Push or Pull Side
Closer Clearance
4 Inch
Product Height
3-1/2 Inch
Application
Commercial Applications Ideal for these Closers Include Schools; Medical Facilities; Institutions and Hospitals as Well as Office Buildings and any Entrance Door with High Foot Traffic
Box Dimensions (L x W x H)
4.75x7.75x13
Closer Cover
Full Plastic Cover
Function Family
Non Hold Open Door Closer
Standards
BHMA Certified ANSI A156.4;Compliant ANSI A117.1; UL/cUL listed; UL10C; UL10B
Door Size
2' 4" to 4' 6" (Interior); 2' 6" to 4' (Exterior)
Features
Multi-Mount; The Recommended Temperature for Prolonged Use is between -40º F (-42º C) & 150º F (66º C)
Fastener Type
Self-Reaming; Self-Tapping Wood and Machine Screws; Sex Nuts and Bolts
Product Length
12-1/4 Inch
Closer Hold-Open
false
Included Components
5101 Closer Body; 5102 Closer Cover; 5103 Main Arm Assembly; 5104 Standard Screw Pack; 5909 Parallel Arm Bracket; 5940 SNB Screw Pack for 1-3/4" (44 mm) Doors
Finish Family
Aluminum
Maximum Door Weight
330 lbs.
Valves
- Adjustable backcheck, sweep, and latching valves- standard
- All valves are staked
Fasteners
- Self-reaming, self-tapping wood and machine screws
- Sex nuts and bolts
Springs
- One piece seamless steel spring tube
- Double heat-treated, steel-tempered springs
- Precision-machined, heat-treated steel piston
FASTENERS - DOOR CONTROLS
STANDARD
MISC. - DOOR CONTROLS
STANDARD
FINISHES - DOOR CONTROLS
ALM - PAINTED SATIN ALUMINUM
COVERS - DOOR CONTROLS
STANDARD
Package Height
4"
Package Length
13"
Package Width
4"
Item Weight
12.6 lbs
