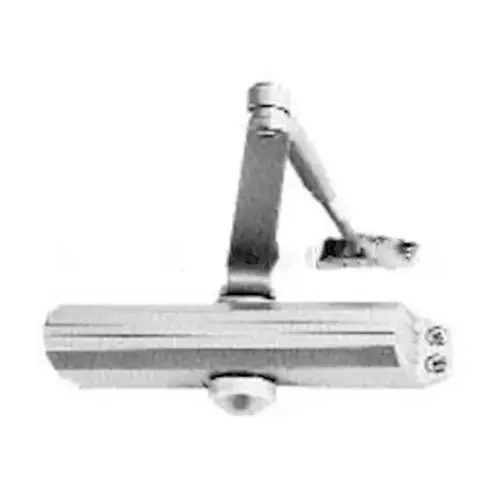

Yale Commercial 51 690 51 Series Door Closer, Dark Bronze Painted

Item #: 51 690 by Yale

UPC #: 049306083966

See reviewsSee reviews
In Stock

$261.06

/each
SAVE UP TO 26.11

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Exceeds 12 million cycles
  • Non-handed
  • Tri-packed (regular arm, top jamb and parallel arm installations)
  • Rack and pinion design
  • Cast aluminum body
  • 1-3/8" diameter piston
  • 5/8" diameter pinion journals
  • Standard, separate and independent latch, sweep and backcheck intensity valves
  • 2-7/8" projection
  • All standard arm applications allow doors to swing 180 degrees, conditions permitting
  • Warranty: 15 years limited
  • Staked valves

Type

Surface

Color

Dark Bronze Painted

Color Code

690/US20

Mounting Style

Tri Mount

Hold Open

Without Hold Open

Closer Size

Adj. 1 to 6

Mounting Location

Push or Pull Side

Package Qty

1

Finish

Dark Bronze Painted

Finish Description

Dark Bronze Painted

Function

Tri-Packed Non-Hold Open Arm

Grade

ANSI/BHMA Grade 1

Spring Size

1-6

Mount

Push or Pull Side

Product Type

Door Closer/Holder/Stop

Series

51 Series

Product Height

2-5/8 Inch

Product Length

9-3/4 Inch

Product Width

2-7/8 Inch

ADA Compliant

YES

Finish Family

Dark Bronze

Product Material

Cast Aluminum

Closer Cover

Without Cover

Standards

Grade 1 - ANSI/BHMA A156.4

Closer Arm Extension

2-7/8 Inch

Closer Arm Type

Regular Arm

Closer Clearance

1-1/2 Inch

Closer Fluid Temperature Range

Very High to as Low as -40°F

Closer Fluid

Closer Fluid

Closer Piston Diameter

1-3/8 Inch

Closer Pinion Diameter

5/8 Inch

Function Family

Non Hold Open Door Closer

Mounting Hole Size

3/4" x 9-1/16"

Fastener Type

Self Drilling Screws

Features

Exceeds 12 Million Cycles; Rack and Pinion Design; Staked Valves

Application

Retail Stores; Warehouses; Restaurants; Garages; Manufacturing and Utility Buildings

Hand

Non-Handed

Handing

Non-Handed

Warranty

30 Year Limited Warranty

Mounting Type

Push or Pull Side

Door Thickness

1-3/4 inch

Door Size

42" (Interior); 36" (Exterior)

Maximum Door Opening

180°

Manufacturer Parent

Assa Abloy

Closer Hold-Open

false

Sub-Series

DC_Surface Mounted Closers_yale_commercial_13
