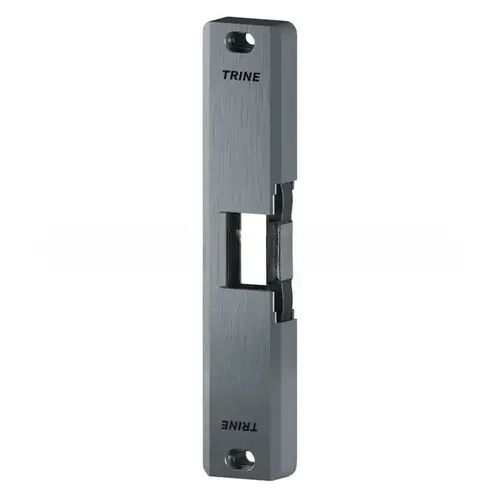

Trine 4800F-32D 4800F 3/4" Electric Strike for Surface Mounted Rim Exit Devices - Fire Rated, Satin Stainless Steel

3 Hour fire rated electric strike for use with surface mounted rim exit devices with 3/4" (or greater) throw. For use in new or replacement installations in wood or metal single door frames. US32D Satin Stainless Steel finish.
The 4800FFire Rated For Free

3 Hour fire rated electric strike for use with surface mounted rim exit devices with 3/4" (or greater) throw. For use in new or replacement installations in wood or metal single door frames.
Note: The 4800F item number replaces the 4800.

You expect fire rating on electric strikes for mortise locks... why not on electric strikes for Rim Panics"

Features:

• For the less than the competitions non-fire rated electric strike, use the Fire Rated 4800F on all your installations.
• Feel secure in your installs and your specs and take the risk out of needing to install a fire rated electric strike later.
• For a lower price, why wouldn't you put in a fire rated electric strike"

• The cavity is completely open -- which means the 4800F allows for a full 3/4" depth and upto a 1" throw with the included two (2) spacer plates -- competitor backplates do not allow for this versatility.

• Built-in electronics automatically allow 11 thru 28 AC & DC Voltage input -- with surge and kickback protection

• Comes with Trines Patented 4-Pin Anchoring System.

• Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.

• Fail-safe/Fail-secure - field selectable
• (Like all electric strikes, it is not fire rated in Fail safe mode)

• BHMA Grade 1 Electric Strike -- 1,500,000+ Life cycles -- 3,000+ lbs. Holding Force

• No cutting or worrying about voltage means you are always prepared.

Electrical Characteristics:

• Voltage - 12DC
• Pull In/Holding Current/Amps - 0.566/0.217
• Duty - Intm./Cont.
• Sound - Silent

• Voltage - 24DC
• Pull In/Holding Current/Amps - 0.253/0.099
• Duty - Intm./Cont.
• Sound - Silent

• Voltage - 12AC
• Pull In/Holding Current/Amps - 0.509/0.181
• Duty - Intm./Cont.
• Sound - Silent

• Voltage - 16AC
• Pull In/Holding Current/Amps - 0.405/0.149
• Duty - Intm./Cont.
• Sound - Silent

• Voltage - 24AC
• Pull In/Holding Current/Amps - 0.215/0.087
• Duty - Intm./Cont.
• Sound - Silent

Available Finishes: 4800F-32D:

• Satin Stainless Steel - BHMA630

4800F-US3:

• Bright Brass -- BHMA605

4800F-10:

• Satin Bronze -- BHMA612

4800F-DKBZ:

• Dark Bronze Powder Coat

4800F-US4:

• Satin Brass -- BHMA606

4800F-32:

• Stainless Steel -- BHMA651

4800F-BLK:

• Black Powder Coat *NEW*
