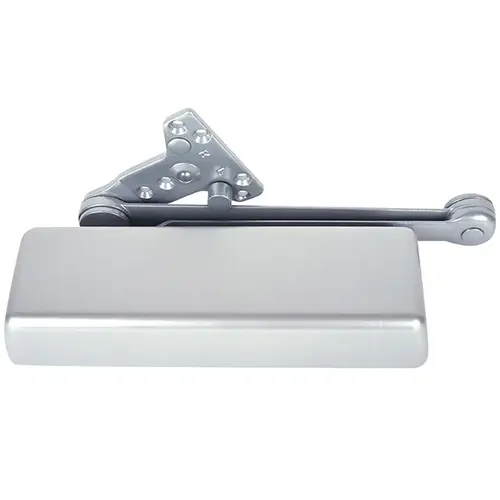

LCN 4116-CUSH RH AL 4110 Series Size 6 Grade 1 Sprayed Aluminum Right Hand Stop Arm Surface Door Closer

Item #: 4116-CUSH RH AL by LCN

UPC #: 840067659533

See reviews See reviews
HURRY! Low in stock

$593.21

/each
SAVE UP TO 59.32

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
  • Standard 4110 series closer is shipped with extra duty arm, standard plastic cover, 4110-201 fifth screw spacer and self reaming and tapping screws
  • Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”
  • Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”
  • Closer mounts parallel arm, specify right or left swinging door
  • 4111 cylinder meets ADA requirements
  • Standard or optional custom powder coat finish
  • Optional plated finish on metal cover, arm and fasteners
  • Optional SRI primer for installations in corrosive conditions is available with powder coat only
  • The 4110 Series is UL and cUL listed for self-closing doors without holdopen
  • Tested and certified under ANSI Standard A156.4, grade one

Closer Size

6

Cold Weather Fluid

Yes

Mounting Style

Parallel Arm

BAA Qualified

Yes

Color Code

689/US28

Mounting Location

Push Side

Hold Open

Without Hold Open

Package Qty

1

Type

Surface

Degree Swing

110 Deg.

Cover

Full Plastic

Special Marks

Complies with ADA accessibility guidelines

Grade

Grade 1

Hand

RH

Color

Sprayed Aluminum

Stop

Dead Stop

Package Volume

0

Handing

Right Hand

Pack Size

1

Manufacturer Warranty

30 Year Warranty

Builders Hardware Product Type

Door Closer

Certifications and Listings

ANSI Certified

Commercial/Residential

Commercial

General Color Family

Metallics

General Material

Steel

Hardware Finish Family

Metal

Maximum Door Range (deg.)

110

Product Depth (in.)

4.5

Product Height (in.)

16

Product Width (in.)

6

Mounting

Top Mount

Warranty

30 Year Warranty

UNSPSC

30171514

The 4110 Series is a heavy-duty closer that meet demands for high-traffic installations and is designed specifically for unique mounting applications. It is UL and cUL listed, meets ANSI/BHMA Grade 1 standards and boasts 30-year warranties. It features a standard plastic cover, with optional plated finishes for the cover, arm and fasteners. It also features the LCN Green Dial spring force indicator, which takes the guesswork out of adjustment.

  • Stop arm
  • Size 6
  • Push side mount
  • Right hand
  • 110° swing
  • Full body cover
  • 30-year warranty
  • ANSI A156.4, grade 1, UL 10C, ADA
  • Self-reaming tapping screws
