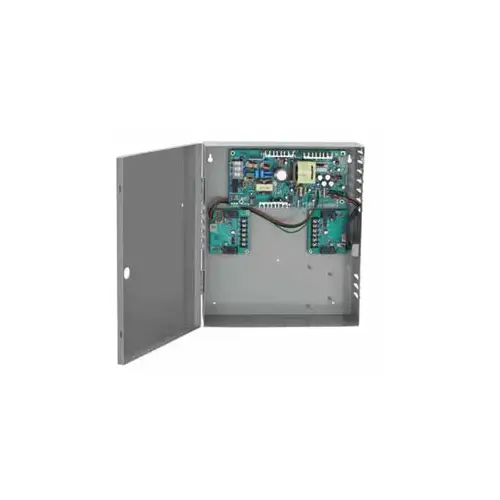

Von Duprin PS914-2RS Power Supply

Item #: PS914-2RS by Von Duprin

See reviews See reviews
In Stock

$854.92

/each
SAVE UP TO 85.49

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • UL294 Listed for Access Control
  • Class 2 Rated Power Limited Output
  • Universal 120-240 VAC Input
  • Regulated and Filtered DC Outputs
  • AC Input, Battery and DC Output LED Indicators

Approved for Commercial Use

Yes

UL Listed

Yes

Power Source

Hardwired

Voltage

12/24 Volt

Configuration

Power Supply

Grade

Grade 1

Fire Alarm Relay

No

Output Amps

4 AMPS

Output Volts

12/24 VDC

Package Qty

1

Modular Options

Yes

Product Type

Access Control Part/Accessory

Alternate Part Number-1

146391

Operating Temperature

32 to 120°F

Function

Power Supply

ADA Compliant

No

Battery Backup

NO

Product Dimensions

14" x 12" x 4"

Standards

ANSI; UL 294 Listed; ULC-S318 Listed; RoHS Compliant; FCC Part 15 Compliant

Monitoring Option

Yes

Fuse Size

6.3A

Battery Included

No

Features

Constant Output Field Selectable With Jumper; For Use With Electrified Panic Device; Filtered and Regulated Power; Two Polarized Option Board Connectors; AC Input Indicator With SPDT Contacts; High-Voltage Protective Cover; Battery Back-Up Board

Input Voltage

120/240VAC

Manufacturer Parent

Allegion

Fire Alarm Interface

No

Number of Relays

2 Inch

Power Supply Type

Switching

Visual Indicators

AC Power; AC Input and DC Output Indicators

Rated Voltage

12/24VDC

Class 2 Output Limited

Yes

Output Type

Dual Voltage

Enclosure Style

Enclosed

Sub-Series

PS914-2RS

Voltage/Amp Rating

12 - 24VDC

PS9144 amp high in rush power supply

Von Duprin power supply and option board products were designed to meet the specific requirements of electrified fire exit devices.

Installation is simplified by utilizing a flat mounting design and polarized locking connectors for option boards. This design eliminates the need for racks and side connectors. The flat mounting of the option boards also provides for easier access to the terminal blocks for connection of electrified devices (such as electrified panic devices, strikes, card readers, etc.).

Common to the line of PS900 Series power supplies is a constant output rating at both 12v and 24v settings, universal 120 VAC to 240 VAC input, and polarized option board connectors. New fire alarm interface board mounting allows outputs to be configured as switched (power cut) or unswitched (power continues) when signal is provided.

Features:
  • 4A @ 12/24 VDC constant output, field selectable with jumper
  • Designed for use with electrified panic devices requiring high in rush current
  • Provides low-voltage, Class 2, filtered and regulated power
  • Universal 120-240 VAC, fused primary input
  • Two polarized option board connectors
  • AC input and DC output monitoring circuit with LED indicators
  • Externally visible AC input indicator with isolated SPDT contacts
  • High-voltage protective cover for AC circuitry
  • Battery back-up board auto-selects voltage
  • Optional Fire Alarm plug-in board available
  • UL 294, ULC-S318, RoHS, and FCC Part 15 certified
Specifications: Input voltage:
  • 120/240 VAC, 50/60 Hz, universal input
Output voltage:
  • 4A @ 12 or 24 VDC
  • Field selectable with jumper
  • Switching supply, 5% regulation, 360mVpp max ripple
Enclosure:
  • Grey/baked enamel
  • 14" x 12" x 4" (H x W x D)
  • Eight 1/2" x 3/4" knockouts
  • Hinged cover with lock down screws
Operating temperature:
  • 32° - 120°F (0° - 49°C)
Certifications:
  • ANSI/UL 294
  • ULC-S318
  • RoHS
  • FCC Part 15
  • Class 2
Battery backup:
  • 900-BB - Battery backup board only
  • 900-BBK - Battery backup kit (backup board plus battery pack)
AC primary fuse size:
  • 6.3A, 250v, 5 x 20mm
Battery fuse size:
  • 7.5A 32v ATO blade style
DC output protection:
  • Overload protection - current limited foldback circuit
Indicators:
  • AC input - LED (visible on outside of enclosure)
  • DC output - LED
  • Isolated SPDT contacts to monitor AC power status
Weight (power supply):
  • Approx. 9.0 lbs
Weight (each battery):
  • 4.0 lbs
AC input termination:
  • 3 position terminal block with protective cover
  • Wire capacity: 10 AWG max
DC output termination:
  • 2 position terminal block
  • Wire capacity: 12 AWG max
Option board connectors:
  • 2
Fire alarm board connector:
  • Yes (requires connection on option board)
Keylock:
  • Optional
Accessories:
  • 900-BAT: Backup battery pack
Available option boards: 900-FA:
  • Plug-in fire alarm (must be installed on option board)
900-2RS*:
  • 2 Relay option board capable of individual or sequential operation for single and pair door applications
900-4R*:
  • 4 Relay option board
900-4RL*:
  • 4 Relay option board with integrated logic and individual or sequential operation capability for controlling security interlocks, auto operators and time delay function
900-8F*:
  • Fused, 8 zone option board
900-8P*:
  • PTC, 8 zone option board
  • * Compatible with plug-in fire alarm board (900-FA)
