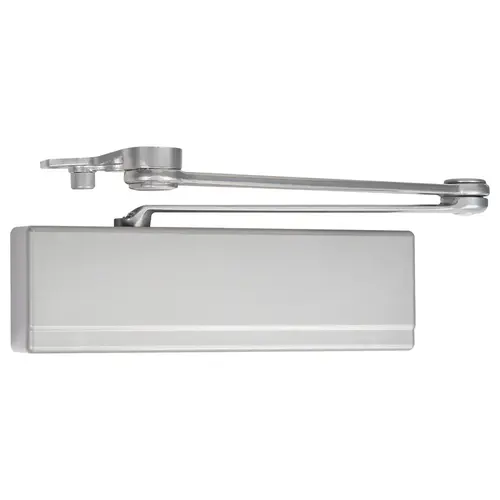

Sargent 351-PS TB EN 351 Series Door Closer Aluminum Painted

Item #: 351-PS TB EN by Sargent

UPC #: 840067677285

See reviewsSee reviews
In Stock

$638.14

/each
SAVE UP TO 63.81

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • ANSI/BHMA A156.4 Grade 1
  • Conforms to UL10C and UBC for positive pressure fire test
  • 10-year warranty
  • Versatile mounting applications permit standard, top jamb, parallel and track installations
  • Adjustable spring power allows 351 closers a size range of 1 through 6. They are adjusted to size 3 before leaving the factory
  • One door closer body for all applications. All 351 are non-handed.
  • Meets ADA requirements in all applications except Push Side Track application
  • High impact non-corrosive plastic covers standard, metal optional. Both secured with two machine screws
  • All weather capabilities
  • Captivated brass valves
  • Interchangeable forged steel arms
  • Standard and parallel arms
  • Push and pull track arms (including double egress)
  • Heavy duty forged steel arms are finely finished and interchangeable between SARGENT 351, 1431 and 281 Series Innovation
  • Standard pressure relief valves for both opening and closing cycles protect the door & frame from damage caused by abuse

Base Material

VARIES

Through Bolts

Yes

Stop

Positive Stop

Special Marks

Fire rated 3 Hours {A}

Package Qty

1

Mounting Location

Push Side

Delay

No

Cold Weather Fluid

Yes

Back Check

Adjustable

Package Width

5"

Package Volume

318.75

Package Length

15"

Package Height

4.25"

Closer Size

Adj. 1 to 6

Fire Rated

3 Hours {A}

Arm Type

Parallel Arm Dead Stop

Hold Open

Without Hold Open

Mounting Style

Parallel Arm

Color Code

689/US28

Color

Aluminum Painted

Hand

Non-Handed

Type

Surface

Cover

Plastic

Grade

ANSI/BHMA Grade 1

UNSPSC

31162800

Handing

Non-Handed

Warranty

30 Year Limited Warranty

Spring Size

Adjustable 1-6

Function

HD Parallel Arm-Stop

Door Thickness

2-1/4 Inch

Mount

Parallel Arm (Push Side)

Door Size

1-3/4" x 7'

Maximum Door Opening

Standard: 120°; Alternate: 180°

Finish Description

Aluminum Painted

Product Height

3-7/8 Inch

Product Length

13 Inch

Product Width

2-3/16 Inch

ADA Compliant

YES

Finish Family

Aluminum

Closer Arm Construction

Forged Steel

Product Material

Die Cast Aluminum Silicon Alloy

Closer Cover

Plastic Cover

Standards

Grade 1 - ANSI/BHMA A156.4; UL 10C Listed; UL / cUL Listed for Use on Fire Rated Doors

Closer Arm Type

Heavy Duty Parallel Arm with Positive Stop

Closer Fluid

All Weather Fluid

Closer Piston Diameter

1-1/2 Inch

Function Family

Non Hold Open Door Closer

Templating

Self Sticking

Fastener Type

Machine Screws and Self Tapping Screws

Features

Through Bolting; Standard Pressure Relief Valves for Both Opening and Closing Cycles Protect the Door and Frame From Damage Caused by Abuse; Heat Treated Full Closed Rack and Pinion Provide Control From the Full Open Position

Product Type

Door Closer/Holder/Stop

Series

351 Series

Manufacturer Parent

Assa Abloy

Closer Hold-Open

false

Sub-Series

DC_Surface Mounted Closers_sargent_25

Mounting Type

Parallel Arm (Push Side)

Application

Highly Trafficked Environments; Schools; Healthcare Facilities; Office and Commercial Buildings; Interior and Exterior Applications
