33A Series Surface Vertical Rod Exit Device - 4'

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

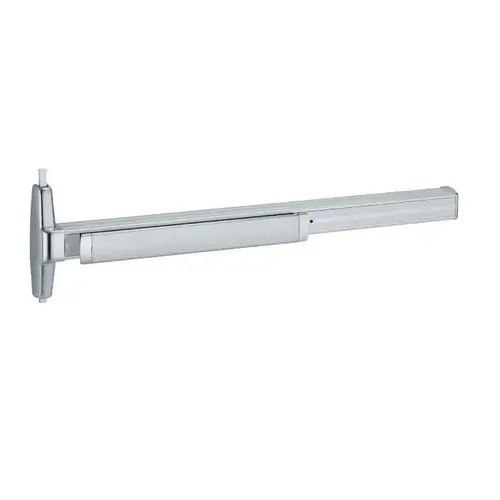

Von Duprin 3327A-EO 4 US28 33A Series Surface Vertical Rod Exit Device - 4'

Item #: 3327A-EO 4 US28 by Von Duprin

UPC #: 840067623732

See reviews See reviews
In Stock

$2,185.16

/each
SAVE UP TO 218.52

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
  • Device lengths: 2' 2' (610 mm) Door size 3' 2'4" to 3' (660mm to 914 mm) door size 4' 2'8" to 4' (813 mm to 1219 mm) door size
  • Device centerline from finished floor: 39 13/16" (1006mm) Center case dimensions 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
  • Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
  • Latch bolt: Deadlocking anti-friction top & bottom bolt 5 /8" (16mm) throw
  • Door undercut: 1 /4" (7mm)
  • Top & bottom latch: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
  • Vertical rods: 1 /2" square tubing, standard rods accommodate 7'(2134mm) door Top rod length is 34 15/16" (887mm) Bottom rod length is 31 1/4" (794mm) Extension rods available 1' (205mm) or 3' (914mm) for doors over 7' One piece top rod available for 8' (2438mm) -10' (3048mm) door
  • Fasteners & sex bolts (SNB): Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood & metal doors #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device) #325 SNB furnished for top and bottom latches

Grade

Grade 1

Hand

Non-Handed

Color

Satin Aluminum Clear Anodized

Color Code

628/US28

Door Thickness

1-3/4 In.

Door Width

34 In. - 48 In.

Device Length

48 In.

Door Height

84 In.

Fire Rated

No

Device Type

Surface Vertical Rod

Dogging Options

Hex Key Dogging

Includes Trim

No

Mechanical Function

Exit Only

Minimum Stile Size

Narrow

Package Qty

1

Physical Appearance

Narrow Stile Pushpad

Strike Bottom

304L

Strike Top

266/248L-4

Base Material

Aluminum

Door Material

Metal or Wood

Finish

Aluminum, Anodized

Warranty

3-year warranty

Pack Size

1

Builders Hardware Product Type

Exit Devices

Door Handing

Universal/Reversible

General Material

Brass

Hardware Finish Family

Metal

Product Depth (in.)

40

Product Height (in.)

10.5

Product Width (in.)

5

UNSPSC

31162800

For Door Thickness

1-3/4" to 2-1/4"

Device Trim ANSI Function

01

Manufacturer Parent

Allegion

Stile Width

2 Inch

Device Rating

Panic Exit Hardware

Finish Description

Satin Aluminum

Stile

Narrow Stile

For Door Height

7 Foot

Function

Exit Only

Latch Type

Deadlocking

Function Description

Exit Only - No Trim

ANSI Function

01

Sub-Series

EDT_Surface_Vertical_Rod_Devices_von_duprin_58

Trim Style

EO

ADA Compliant

No

Device Centerline From Finished Floor

39-13/16 Inch

Center Case Dimensions

8-13/16" x 2-13/32" x 1-9/16"

Application

Double Doors; Higher Education; K-12 Schools; Hospital; Hospitality; Government Buildings

Length

4

Device Trim Function

No Outside Trim

Function Family

Exit Only-No Trim

Standards

ANSI/BHMA A156.3 2014 Grade 1 Certified; ANSI/UL 305; CAN/ULC-S132

Device Bar Projection

3-13/16" Pushbar Neutral; 3-1/16" Pushbar Depressed

Trim Options

EO Exit Only

Product Type

Exit Device

Features

Modular Design Allows Ability to Upgrade Device to Keep Up With Changing Technology; Designed for High Use and Abuse in Institutional Applications Like Schools, Hospitals and Government Facilities

Bolt Throw

Top and Bottom bolt 5/8" Throw

Mechanism Case Dimensions

2-1/4" x 2-1/4"

For Door Width

2 Foot 8" to 4 Foot

Recommended Door Undercut

1/4"

Included Components

Fasteners and Through Bolts

Finish Family

Aluminum

Narrow Style, Surface Vertical Rod Exit Device, Satin Aluminum Clear Anodized

3327A and 3527A for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 - 2001 Grade 1. The 3527A has a smooth mechanism case and the 3327A has grooved case. The surface vertical rod device is non-handed except when the SS (Signal Switch) option is used. 3327A/3527A fits door stiles as narrow as 1 3/4" (44mm). Newly designed device has a one piece center case cover. Device Lengths: 3' 2'4" to 3', 4' 2'10" to 4'. Hex key dogging standard. standard rods accommodate 7' door.

Devices are ANSI A156.3 – 2001 Grade 1.

The 3327A has grooved case and the surface vertical rod device is non-handed except when the SS (signal switch) option is used.
