Von Duprin 22EO-F-3-SP28 Von Duprin Exit Device, Sprayed Aluminum

Item #: 22EO-F-3-SP28 by Von Duprin

UPC #: 840067623602

See reviews See reviews
In Stock

$524.45

/each
SAVE UP TO 52.45

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
  • Device functions: Ships ready for all functions, EO, DT, NL, TP, K, L
  • Device lengths: 3' (914 mm), 4' (1219 mm)
  • Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
  • Center case dimensions: 4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
  • Mechanism case dimensions: 2" (51 mm) x 3 3/4" (95 mm)
  • Projection push bar: Push bar neutral - 3 3/4" (95 mm) push bar depressed - 3" (76 mm)
  • Latch bolt: Deadlocking, 3 /4" (19 mm) throw
  • Fasteners & sex bolts (SNB): Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal doors optional SNB available for device
  • Electric options: LX latchbolt monitor switch RX pushpad monitor switch RX2 double pushpad monitor switch ALK alarm exit kit CON Allegion Connect
  • Mechanical options: GBK glass bead kit AX accessible device
  • Dogging feature: Hex key dogging standard
  • Dogging options: LD less dogging

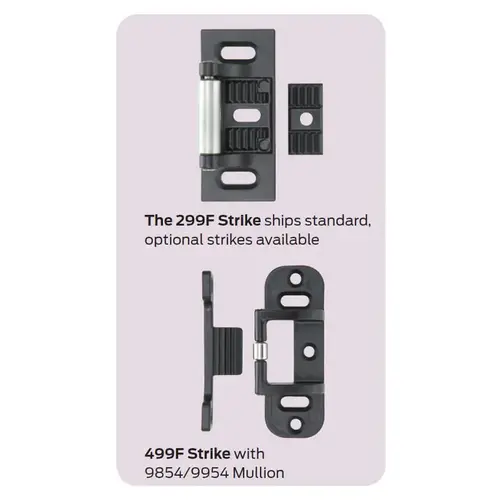

  • Strikes: 299 – Dull black

Grade

Grade 1

Hand

Non-Handed

Color

Aluminum Painted

Color Code

689/US28

Case Length

41"

Door Thickness

1 3/4 In. - 2 1/4 In.

Door Width

25 7/8 In. - 36 In.

Device Length

36 In.

Fire Rated

3 Hours {A}, Yes

Origin

USA

BAA Qualified

Yes

Package Height

10.5"

Package Length

36.75"

Package Volume

1929.375

Package Width

5"

Case Height

11.75"

Case Volume

7708

Case Width

16"

Device Type

Rim

Includes Trim

No

Mechanical Function

Exit Only

Mechanical Options

Fire Rated Device

Minimum Stile Size

Wide

Package Qty

1

Physical Appearance

Wide Stile Pushpad

Product Height

4.25"

Product Length

33.125"

Product Width

3.75"

Special Marks

Fire rated 3 Hours {A}

Base Material

VARIES

Door Material

Metal or Wood

Finish

Sprayed Aluminum

Warranty

1 Year From Date of Purchase.

Pack Size

1

Builders Hardware Product Type

Exit Devices

Door Handing

Universal/Reversible

General Material

Brass

Hardware Finish Family

Metal

Product Depth (in.)

36.75

Product Height (in.)

10.5

Product Width (in.)

5

UNSPSC

31162800

Aluminium Bottle Contents

Swinging

ProductType

Manual

Application

Single Doors and Double Doors

Length

3

Function

Exit Only

Bolt Throw

3/4 Inch

Stile

Wide Stile

Finish Description

Aluminum Painted

ANSI Function

01

Dogging Options

Hex Key Dogging

Latch Type

Deadlocking

ADA Compliant

No

Finish Family

Aluminum

Door Style Width

3-5/8" (92 mm)

Trim Options

EO Exit Only

Standards

ANSI/BHMA A156.3 2014 Grade 1 Certified; ANSI/UL 305; CAN/ULC S132

Stile Width

4-3/8 Inch

Trim Style

EO

Center Case Dimensions

4-5/32 Inch x 3-3/16 Inch x 2-3/8 Inch

Device Bar Projection

Push Bar Neutral: 3-11/16 Inch; Push Bar Depressed: 2-7/8 Inch

Device Rating

Fire Exit Hardware

For Door Height

7 Foot

Device Trim Function

Exit Only (No Outside Trim)

Function Description

Exit Only - No Trim

Device Centerline From Finished Floor

39-13/16 Inch; 39-11/16 Inch with Mullion

Function Family

Exit Only-No Trim

Device Trim ANSI Function

01

For Door Width

3 Foot

Mechanism Case Dimensions

2" x 2-3/8"

Features

Push Pad; Wide Stile; Economical Alternative That Incorporates a Modern Touch Bar Styling for Medium to Low Traffic Openings

Product Type

Exit Device

Manufacturer Parent

Allegion

Sub-Series

EDT_Rim_Devices_von_duprin_5

Rim Exit Device, Exit Only, 36 In., Fire Rated, Aluminum

22 Rim exit device for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2008 Grade 1. Covers stock hollow metal doors with 161 cutouts. Fits door stiles as narrow as 3 13/16”. The device is non-handed.

Rim exit device for all types of single and double doors with mullion.

Grade 1 Rim exit device for all types of single and double doors with mullion, UL listed for Panic Exit Hardware.
