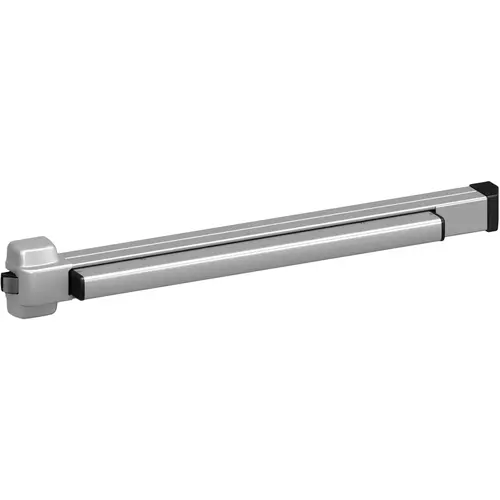

22EO 689 3' Exit Device - Aluminum

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Von Duprin 22EO 3 SP28Click To Copy 22EO 689 3' Exit Device - Aluminum

Item #: 22EO 3 SP28 by Von Duprin

UPC #: 043156870776

See reviewsSee reviews
See reviews summary
In Stock

$445.54

/each
SAVE UP TO 44.55

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 857 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Device functions: Ships ready for all functions, EO, DT, NL, TP, K, L
  • Device lengths: 3' (914 mm), 4' (1219 mm)
  • Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
  • Center case dimensions: 4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
  • Mechanism case dimensions: 2" (51 mm) x 3 3/4" (95 mm)
  • Projection push bar: Push bar neutral - 3 3/4" (95 mm) push bar depressed - 3" (76 mm)
  • Latch bolt: Deadlocking, 3 /4" (19 mm) throw
  • Fasteners & sex bolts (SNB): Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal doors optional SNB available for device
  • Electric options: LX latchbolt monitor switch RX pushpad monitor switch RX2 double pushpad monitor switch ALK alarm exit kit CON Allegion Connect
  • Mechanical options: GBK glass bead kit AX accessible device
  • Dogging feature: Hex key dogging standard
  • Dogging options: LD less dogging
  • Strikes: 299 – Dull black

Grade

Grade 1

Hand

Non-Handed

Color

Aluminum Painted

Color Code

689/US28

Case Length

41"

Door Thickness

1 3/4 In. - 2 1/4 In.

Door Width

25 7/8 In. - 36 In.

Device Length

36 In.

Fire Rated

No

Origin

USA

BAA Qualified

Yes

Package Height

5"

Package Length

37"

Package Volume

1929.375

Package Width

10.5"

Case Height

11.75"

Case Volume

7708

Case Width

16"

Device Type

Rim

Dogging Options

Hex Key Dogging

Includes Trim

No

Mechanical Function

Exit Only

Minimum Stile Size

Wide

Package Qty

1

Physical Appearance

Wide Stile Pushpad

Product Height

4.25"

Product Length

33.125"

Product Width

3.75"

Base Material

VARIES

Door Material

Metal or Wood

Application

Single Doors and Double Doors

Length

3

Function

Exit Only

Bolt Throw

3/4 Inch

Stile

Wide Stile

Finish Description

Aluminum Painted

ANSI Function

01

Latch Type

Deadlocking

ADA Compliant

No

Finish Family

Aluminum

Door Style Width

3-5/8" (92 mm)

Trim Options

EO Exit Only

Standards

ANSI/BHMA A156.3 2014 Grade 1 Certified; ANSI/UL 305; CAN/ULC S132

Stile Width

3-13/16 Inch

Trim Style

EO

Center Case Dimensions

4-5/32 Inch x 3-3/16 Inch x 2-3/8 Inch

Device Bar Projection

Push Bar Neutral: 3-11/16 Inch; Push Bar Depressed: 2-7/8 Inch

Device Rating

Panic Exit Hardware

For Door Height

7 Foot

Device Trim Function

Exit Only (No Outside Trim)

Function Description

Exit Only - No Trim

Device Centerline From Finished Floor

39-13/16 Inch; 39-11/16 Inch with Mullion

Function Family

Exit Only-No Trim

Device Trim ANSI Function

01

For Door Width

3 Foot

Mechanism Case Dimensions

2" x 2-3/8"

Features

Push Pad; Wide Stile; Economical Alternative That Incorporates a Modern Touch Bar Styling for Medium to Low Traffic Openings

Product Type

Exit Device

Series

22 Push Bar

Manufacturer Parent

Allegion

Sub-Series

EDT_Rim_Devices_von_duprin_5

Finish

Satin Aluminum

Item Weight

11.35 lbs

Maximum Door Width

3'

Performance

Medium-Duty

Projection

3 (Depressed) in

Minimum Door Width

2'6"

Finish/Coating

Sprayed Aluminum

PSC Code

5340

Vendor Drop Ship

Y

Product Overview
Von Duprin 22 Series Exit Devices incorporate modern touchbar styling for all types of doors, while providing smooth, reliable, and safe egress in medium-traffic to low-traffic dwellings. Breakaway lever technology protects against vandalism, while its non-handed design increases adaptability in the field. Ideal for use in education, commercial, government offices and healthcare applications, Von Duprin 22 Series Exit Devices are universally built to protect in all environments.
