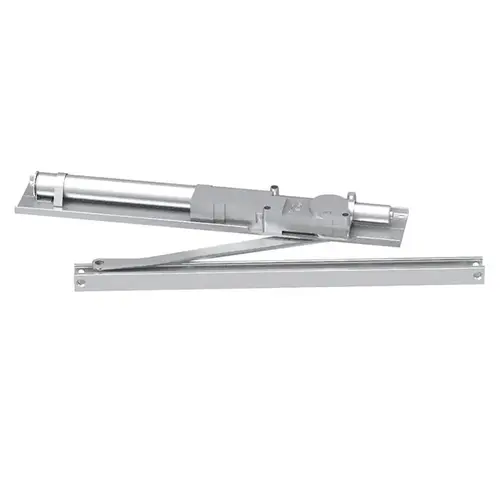

2030 Series Size 1 to 5 Sprayed Aluminum Grade 1 Concealed Door Closer, Standard Arm, Left Hand

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

LCN 2031-STD LH AL 2030 Series Size 1 to 5 Sprayed Aluminum Grade 1 Concealed Door Closer, Standard Arm, Left Hand

Item #: 2031-STD LH AL by LCN

UPC #: 840067659977

See reviewsSee reviews
In Stock

$1,228.68

/each
SAVE UP TO 122.87

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Standard 2030 series closer shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack
  • Sized cylinders for interior doors to 4’6” and exterior doors to 3’6”
  • Handed for right or left swinging doors
  • Aluminum frame requires minimum 1 3/4” (44 mm) x 4” (102 mm) tube
  • Closers to meet ADA requirements
  • Standard or optional custom powder coat finish
  • Optional plated finish on arm, fasteners and finish plate

Grade

Grade 1

Type

Concealed Overhead

Hand

LH

Color

Sprayed Aluminum

Color Code

689/US28

Hold Open

Without Hold Open

Closer Size

1

BAA Qualified

Yes

Package Volume

0

Cold Weather Fluid

Yes

Degree Swing

180 Deg.

Mounting Location

In Header

Package Qty

1

Base Material

VARIES

Handing

Left Hand

Pack Size

1

Manufacturer Warranty

15 Year Limited Warranty

Builders Hardware Product Type

Door Closer

Certifications and Listings

ANSI Certified

Commercial/Residential

Commercial

General Color Family

Metallics

General Material

Steel

Hardware Finish Family

Metal

Maximum Door Range (deg.)

110

Product Depth (in.)

4

Product Height (in.)

24

Product Width (in.)

4.5

Mounting

Standard Arm, Standard Track

Warranty

1 Year From Date of Purchase.

UNSPSC

30171514

Aluminium Bottle Contents

Swinging

ProductType

Manual

Door Series

2030

Closer Pinion Diameter

11/16 Inch

Manufacturer Parent

Allegion

Closer Piston Diameter

1-1/8 Inch

Closer Arm Type

Standard Arm and Track

Maximum Door Weight

225 lbs.

Finish Description

Aluminum Painted

Product Width

1-5/8 Inch

Function

STD-Standard Arm

Sub-Series

DC_Concealed_Closers_lcn_1

ADA Compliant

YES

Spring Size

1

Product Height

3-23/32 Inch

Function Family

Hold Open Door Closer

Mount

Concealed (In Tube)

Standards

Grade 1 - ANSI A156.4; UL 10C; BAA

Minimum Door Thickness

1-3/4 Inch

Closer Action

Single Acting

Closer Fluid

All Weather Fluid

Hold-Open Type

110° Hold Open

Product Type

Door Closer/Holder/Stop

Features

Full Complement Bearing; The Single Lever Arm and Roller Assembly Provide Smooth Quiet Door Control; Cast Iron Body

Fastener Type

Wood and Machine Screws

Product Length

21-7/8 Inch

Closer Hold-Open

false

For Door Width

Exterior Door Width - Size 1 (28"); Interior (28")

Series

2030 Series

Included Components

Standard Cylinder with Mounting Plate; Standard Arm; Standard Track; Wood and Machine Screws

Finish Family

Aluminum

Options

Machine Screws, Mounting Plate, Wood Screws

Arm Type

Standard

Alternate Part Number-1

154390

Closer Type

Concealed, Mechanical

Maximum Opening

180°

Finish code

689

Arm Function

Non-Hold Open

Finish

Aluminum

Dimension

21-7/8" x 3-23/32" x 1-5/8" Body, 22-1/2" x 1-1/4" x 1-1/4" Track

Hazardous Material

No

Product Overview

The heavy-duty 2030 Series closers is designed for concealment in a narrow minimum 1-3/4 in. aluminum transom, meeting ANSI/BHMA A156.4 Grade 1 and the American Disabilities Act (ADA) reduced opening force requirements. A forged steel single-lever arm for the 2030, quiet door control, with separate regulation of general closing speed and latching speed. It is UL and cUL listed for self-closing doors without hold-open and carry a 15-year limited warranty. Materials include a cast iron cylinder, a 1-piece forged steel piston, a high-efficiency, full-complement, low-friction bearing, tamper-resistant regulating screw and all-weather fluid. Optional plated finishes accent the arm, fasteners and finish plate.

  • Standard arm
  • Size 1 to 5
  • Frame mount
  • Left hand
  • 180° swing
  • Not applicable
  • 15-year limited warranty
  • ANSI A156.4, grade 1, UL 10C, ADA
  • Wood and machine screws
