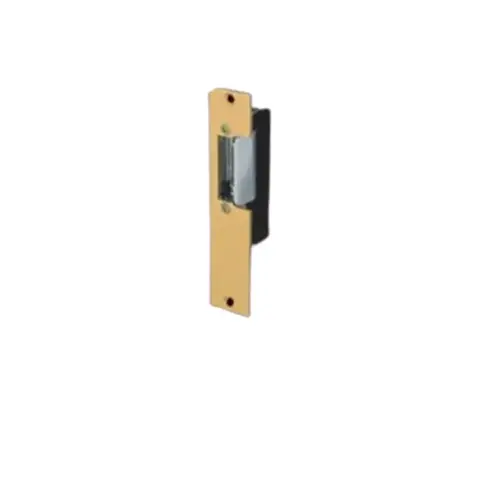

Trine 2001-16-24AC/DC Electric Strike Satin Brass Painted

Item #: 2001-16-24AC/DC by Trine

See reviewsSee reviews
In Stock

$99.36

/each
SAVE UP TO 9.94

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • 1/8” Horizontal Latch Adjustment.
  • Releases Under Slight Door Pre-Load.
  • 500,000 Life Cycles -- Holding Force - 900 lbs.
  • Solid Cast Latch - Chrome Plated.
  • Non Handed Operation.
  • Screw Terminals - Quick Connection.

Amp Draw

.23-.375 / .325-.500

Color

Satin Brass Painted

Keeper Size

5/8 In.

Faceplate Size

5-7/8 In. X 1-1/4 In.

Function

Electrically Unlocked (Fail Secure)

Configuration

Custom

Operating Voltage

16-24VAC/VDC

Package Qty

1

Color Code

696/US4

Switch Type

None

Base Material

VARIES

Manufacturer Parent

Trine Access Technology

Product Width

5/8 (Cavity) Inch

Faceplate Dimension

5-7/8" x 1-1/4"

Latch Throw

5/8 Inch

Hand

Non- Handed

Sub-Series

2001-16-24AC/DC

Product Height

1-11/16 (Cavity) Inch

Application

Light Commercial

Function Family

Electric Strike

Voltage

24 VDC

Product Type

Access Control

Features

Allows Adjustment for Wider Latch Bolts & Poorly Aligned Doors & Locksets; Releases Under Slight Door Pre-Load; 500000 Life Cycles; Screw Terminal

Product Material

Solid Cast Latch

Strength

900 lbs.

Current Draw

16-24 VAC; 0.22-0.33 Amps

Product Length

9/16 (Cavity) Inch

Faceplate Shape

Narrow Style Faceplate

Included Components

1/8" Horizontal Latch Adjustments
