The CRL8500 Series Floor Mounted Door Closer has a heavy weight capacity capable of handling doors weighing up to 800 lbs. (363 kg). The Door Closer is available in either 90 degree or 105 degree Hold Open or No Hold Open models in three spring sizes to accommodate most standard installations.
The supplied 1/8" (3 mm) collar height Standard Spindle is interchangeable with other available Spindles to accommodate different finished floor heights. Accessories such as Cover Plates, Pivots, Center-Hung and Offset Arms are also available.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entryway due to over-extension of maximum allowable door swing.
SPECIFICATIONS:
Maximum Door Weight: 800 lbs. (363 kg)
Maximum Interior Door Width: 54" (1.37 m)
Maximum Exterior Door Width: 48" (1.22 m)
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL CRL8532 180 degree No Hold Open Size 3 Spring Heavy Weight Floor Mounted Door Closer
Item #: CRL8532 by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- The Perfect Door Closer to Support CRL's Door Rail System
- Interchangeable Spindle Heights
- Independent Closing and Latching Speed Adjustments
- 5 Year Limited Warranty
- UL Listed
Type
180º No Hold Open
Spring Size
3
Maximum Door Size Interior
42" (1.07 m)
Maximum Door Size Exterior
36" (914 mm)
No Hold Open
180°
UL Listed
Yes
Includes
CRL85CB, CRL9040S3
Door Height
96
Closer Type
Floor Closer
Independent Closing and Latching Valves
Yes
Recommended Door Type
Aluminum, Hollow Metal
Similar
CRL8460, J990NHOD
Interior Or Exterior Doors
Yes
Maximum Weight Center Hung
800 Pounds
Closer Body With Box
Yes
Interchangeable Spindles
Yes
Maximum Door Width - Exterior
48 Inches
Replacement Parts
CRL85CB, CRL9040S3
Auxiliary Stop Recommended
Yes
Spindle Included
Yes
Maximum Door Width - Interior
54 Inches

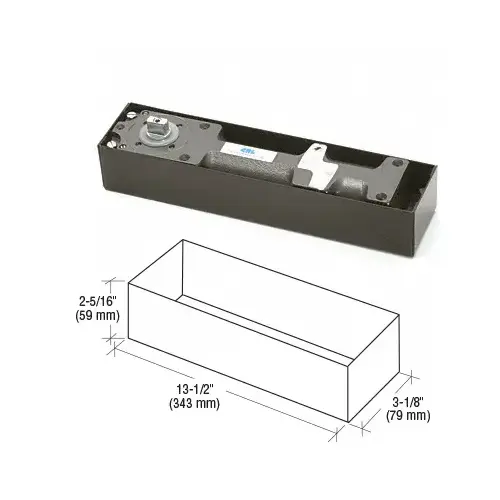

Body Length
13-1/2
Body Height
2-5/16
Body Width
3-1/8
Handing
Double Acting
Product Overview
The CRL8500 Series Floor Mounted Door Closer has a heavy weight capacity capable of handling doors weighing up to 800 lbs. (363 kg). The Door Closer is available in either 90 degree or 105 degree Hold Open or No Hold Open models in three spring sizes to accommodate most standard installations.
The supplied 1/8" (3 mm) collar height Standard Spindle is interchangeable with other available Spindles to accommodate different finished floor heights. Accessories such as Cover Plates, Pivots, Center-Hung and Offset Arms are also available.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entryway due to over-extension of maximum allowable door swing.
SPECIFICATIONS:
Maximum Door Weight: 800 lbs. (363 kg)
Maximum Interior Door Width: 54" (1.37 m)
Maximum Exterior Door Width: 48" (1.22 m)
