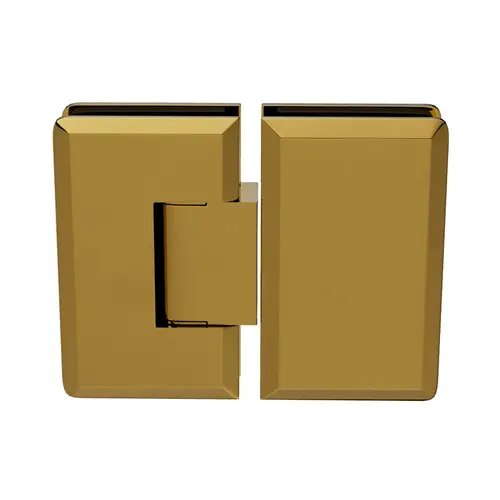

Brixwell H-P180GTGA-LB Adjustable Premier Series Glass To Glass Mount Shower Door Hinge 180 Degree Lifetime Brass
Item #: H-P180GTGA-LB by Brixwell
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Adjustable Feature Allows for Adjustment of Door Closing Position After Installation
- The adjustment feature enables that the door closing position can be adjusted after the door has been installed
- The kit includes matching stainless steel screws for mounting, and they blend seamlessly with the hinge
- Matching Finish Stainless Steel Allen Style Clamp Screws (Phillips Screws Available Upon Request)
- Machine-precision mounting hardware components and easy to follow steps from glass fabrication manual guarantee a quick installation
- Self-Centering 0° Return with Adjustment Up to 30° In or Out
- Solid Forged Brass Construction
- Precision Machined 300 Series Stainless Steel Components
- Dual Precision Wound Stainless Steel Return Springs
- Self-Closing from 25 Degrees
- Mouse Ear Design
- Designed for 3/8" and 1/2" (10 and 12 mm) Glass
- Wall Mount Hinges Include Matching Finish Stainless Steel Mounting Screws
- Allen Wrench Included
- Rated at 40 lbs (18 kg) per Hinge
Height
4
Finish
Lifetime Brass
Material
Solid Forged Brass
Width
5
Type
180 Degree
Mounting Style
Glass-to-Glass mount
Closing Type
Self-Centering 0° Return with Adjustment Up to 30° In or Out
Pack Size
1
Angle Degree
180 Degree
Designed For
3/8" and 1/2" (10 and 12 mm) Glass
Adjustable Angle Instructions
1. Use 3 mm Hex Wrench (A) to loosen two screws (B) by turning one circle counter-clockwise. Then proceed with the adjustment. 2. Once you have aligned the door, re-tighten two screws (B).
Self-Closing
From 25 Degrees
Other Specifications
Maximum door weight: - 2-hinge - 80 lbs (36 kg) - 3-hinge - 120 lbs (54 kg) Maximum door width: - 2-hinge - 30" (762 mm) - 3-hinge - 36" (914 mm)
Hardware Includes
Matching Finish Stainless Steel Mounting Screws and Allen Wrench
Series
Adjustable Premier
