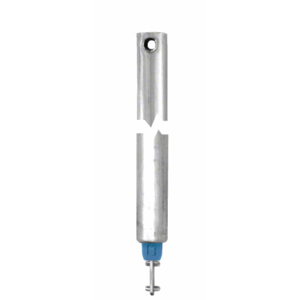

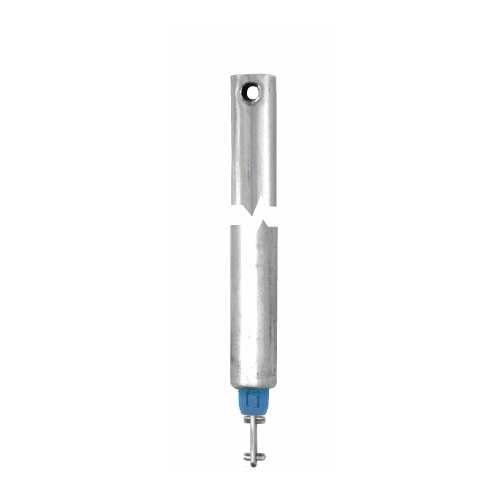

CRL FH1730 17" Tubular Spiral Tilt Window Balance Blue Bushing

Item #: FH1730 by CR Laurence

1 1 reviews
In Stock

$16.97

/package
SAVE UP TO 1.70

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
  • Blue Bushing Indicates Sash Load Weights of Up to 35 Pounds (15.9 Kg)
  • Tilt Window Type with Industry Standard 9/16" (14 mm) Tube Diameter
  • Will Replace Either Metal or Plastic Tube Balances

Tube Diameter

9/16

Bushing Color

Blue

Tube Length

17

Window Type

Tilt

Heaviest Vent Weight Range

35


This CRL Tubular Spiral Window Balance for tilt type windows will replace a 9/16" (14 mm) metal or plastic tube balance with a sash load capacity of up to 35 pounds (15.8 kg). While this balance is packaged and sold individually, it is our recommendation that both balances in the window be replaced at the same time.

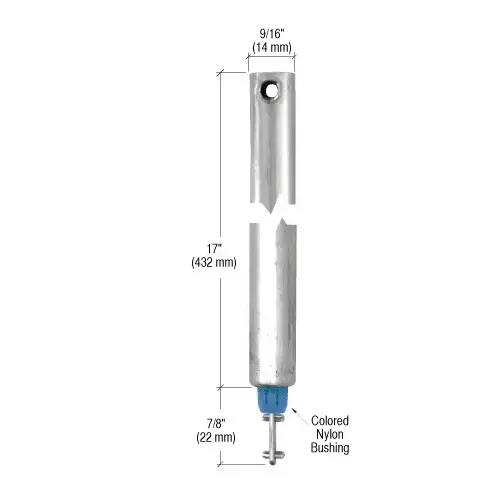

How to Order Tubular Spiral Window Balances:
  • 1. Check the tube diameter of the metal or plastic tube on the old balance.
  • 2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only. Do not include the rod extension.
  • 3. Check the color of the nylon bushing.
  • 4. Verify that the rod extension protruding from the nylon bushing matches.
  • 5. Match tube diameter, tube length, nylon bushing color against the information shown next to the catalog number. If all agree, and the rod extension matches the one in the photo, then this is the correct balance.

    .
