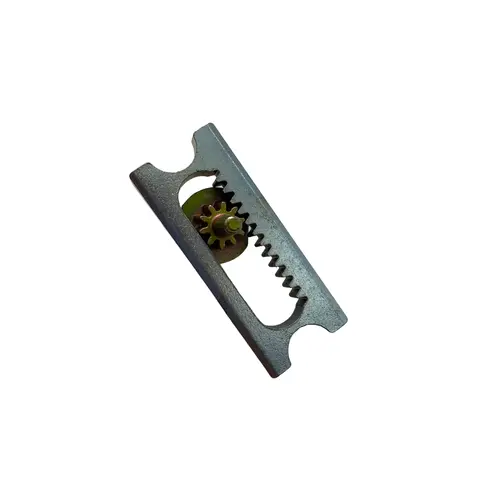

Falcon 169CA 1690 CYLINDER ASSEMBLY, Satin Aluminum Clear

1690 SeriesConcealed vertical rod touchbar device

The design of the 1690 is ideal for demanding, moderate-traffic applications. The vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring trouble-free operation. Cast metal cover plates and end caps hold up to rigorous use. A quick, single-point dogging feature in the housing deactivates the device, permitting unrestricted traffic flow. The 1690 may also be used to retrofit a 1990 Series crossbar device.

Specifications: Hand:

• Field reversible, non-handed.

Finishes:

• US28, DC13, DC 35, US3, US10, US26, US26D. Centercase and end cap are powder-coated black only.

Strikes:

• PB48 top.

Latches:

• Standard top - SU latch.
• Standard bottom - hex bottom bolt.
• Optional top - ES - electric strike top latch, device must be less bottom rod (LBR).
• Optional bottom - RL - rod bottom latch. - PL - pullman bottom latch

Dogging feature:

• Hex key dogging standard, except EL where must use hold back feature on outside cylinder

Cylinder:

• Rim, night latch (NL) or hold back (HB) feature available. Field selectable.

Sizes:

• 30", 36", 42", and 48".

Doors:

• 1 3/4" thick metal doors, specify if other.*

Projections:

• 3 3/8" in neutral position, 2 3/8" in dogged position. Pushbar height is 2 1/2".

Stile:

• 1 3/4" minimum.

Electric functions:

• EL - electric latch retraction, ED - electric dogging (both EL and ED require PS914-2RS minimum power supply). RX - request to exit switch, monitors pushpad SPTD switch.

Fasteners:

• All machine screw mounting. Device mounting fasteners are concealed, latch fasteners are exposed to egress side.

End caps:

• Black powder-coated metal end caps.

Vertical rods:

• 7' standard, extension rods available up to 10'. Rod extension kits available.7' standard, extension rods available up to 10'. Rod extension kits available.

ANSI:

• Certified ANSI A156.3 grade 1 standards.

Hurricane:

• 1690 devices are used for hurricane rated door openings. Consult door manufacturer’s listing.

• * 9970 is for use on HM and Alum doors only. Not for use on wood doors.
