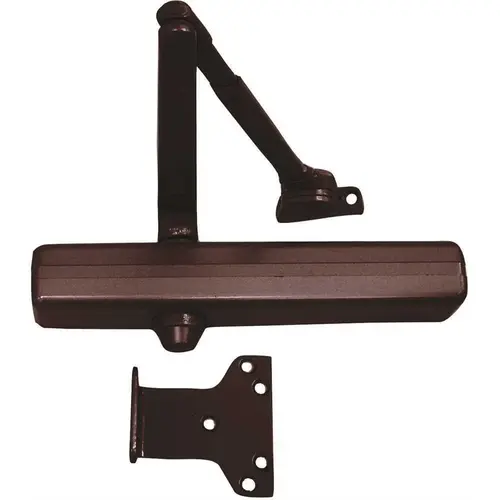

1460 Series Surface Mounted Door Closer, Dark Bronze Painted

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

LCN 1461-Hw/PA DKBRZ 1460 Series Surface Mounted Door Closer, Dark Bronze Painted

Item #: 1461-Hw/PA DKBRZ by LCN

UPC #: 840067623480

See reviewsSee reviews
In Stock

$891.88

/each
SAVE UP TO 89.19

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
  • Multiple cover options include; Standard (Slim line), Full and Designer Series
  • Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
  • Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
  • Closer meets ADA requirements
  • Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
  • Optional SRI primer for installations in corrosive conditions

Grade

ANSI/BHMA Grade 1

Cover

Slim Plastic

Type

Surface

Hand

Non-Handed

Color

Dark Bronze Painted

Color Code

695

Mounting Style

Tri Mount

Hold Open

With Hold Open

Closer Size

1-6

BAA Qualified

Yes

Package Volume

0

Cold Weather Fluid

Yes

Degree Hold Open

180 Deg.

Degree Swing

180 Deg.

Mounting Location

Push or Pull Side

Package Qty

1

Base Material

VARIES

Pack Size

1

Builders Hardware Product Type

Door Closer

Certifications and Listings

ADA Compliant, ANSI Certified, UL Certified

Commercial/Residential

Commercial

General Color Family

Browns / Tans

General Material

Cast Iron

Hardware Finish Family

Bronze

Maximum Door Range (deg.)

110

Product Depth (in.)

16

Product Height (in.)

6

Product Width (in.)

4.5

Mounting

Parallel Arm

Warranty

30 year

Spring Size

1-6

Function

HW/PA-Hold Open Arm w/PA Shoe

Mount

Push or Pull Side

Finish Description

Dark Bronze Painted

Product Type

Door Closer/Holder/Stop

Series

1460 Series

Finish

Dark Bronze Painted

UNSPSC

30171514

Finish Family

Dark Bronze

Closer Exterior Door Size

up to 4'

Included Components

Patented Green Dial Spring Force Indicator

Closer Hold-Open

true

Closer Arm Configuration

Hold Open Arm w/Parallel Arm Shoe

Product Length

12-1/4 Inch

Fastener Type

Self Reaming and Tapping Screws

Product Material

Cast Iron

Features

Full Complement Bearing; Double Heat-Treated Steel Pinion Journal

Closer Fluid Temperature Range

-30°F to 120°F

Closer Interior Door Size

up to 5'

Closer Fluid

All Weather Fluid

Door Thickness

1-3/4 inch

Templating

Peel-n-Stick

Door Size

5' (Interior); 4' (Exterior)

Closer Construction

Cast Iron

Standards

Grade 1 - ANSI A156.4, UL 10C, 100 Hour Salt Spray, Meets BAA - Buy American Act

Function Family

Hold Open Door Closer

Closer Cover

Slim Plastic Cover

Closer Arm Extension

11-3/8" (Hinge Pull, Top Jamb Push)

Application

Commercial; Institutional Applications

Product Height

2 Inch

Closer Clearance

2-3/8" (Hinge Pull); 4" (Parallel Arm Push)

Mounting Type

Push or Pull Side

ADA Compliant

YES

Sub-Series

DC_Surface Mounted Closers_lcn_46

Maximum Door Opening

120° (Hinge Pull, Top Jamp Push); 180° (Parallel Arm)

Closer Arm Construction

Forged

Product Width

2-3/8 Inch

Mounting Hole Size

1" x 7-1/2"

Closer Arm Type

Hold Open Arm Parallel Arm Shoe

Closer Piston Diameter

1-1/4 Inch

Handing

Non-Handed

Closer Application

Surface

Manufacturer Parent

Allegion

Closer Pinion Diameter

3/4 Inch
