CONTROLS: All controls are built to OSHA requirements, utilizing CE, CSA, and UL Certified components.
GRINDING BELTS: Requires two each, 4" x 106" (102 mm x 2.69 m) abrasive belts (not included). We recommend using our fast-grinding, 100% polyester backed belts for both wet and dry grinding applications. These belts are available in 14 grit sizes.
NOTE: Versions are available for international voltages.
SPECIFICATIONS:
Electrical - Two Motors, Total 1.0 HP Each (0.745 kW)
Power: 208, 230 or 480 volt, 3 Phase, 60 Hz
Footprint Size: 36" x 66" x 48" (0.914 m x 1.67 m x 1.22 m)
Support Equipment: Twin Seamer Ball Caster Extension Table
Shipping Weight: 600 Lbs. (227 kg)
Glass Working Height: 33" to 36" (838 to 914 mm)
AVAILABLE OPTIONS INCLUDE:
DUST COLLECTOR UNIT Model (Cat. No. DBS2DC) Open style using lined dust collection bags.
SWIVEL BALL CASTER TABLE WITH OPERATOR CUT-OUT - allows glass pieces to be easily moved into position and seamed at a consistent height. Model (Cat. No. B6211500) has ball casters spaced 6" (152.4 mm) apart.
ROLLER TRACK KIT - Model (Cat. No. DBS1RT) - has four roller wheels, a floor track, and floor lock. Designed for rolling-out the seamer during belt changes, when located inset by the swivel ball caster tables extensions.
NOTE: This option will fix working height of the seamer at 36" (914 mm).
Product Warning:
CAUTION: When grinding, always wear safety eyewear and an approved glass dust respirator.
MADE TO ORDER:
Ships Direct From Dallas, TX
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

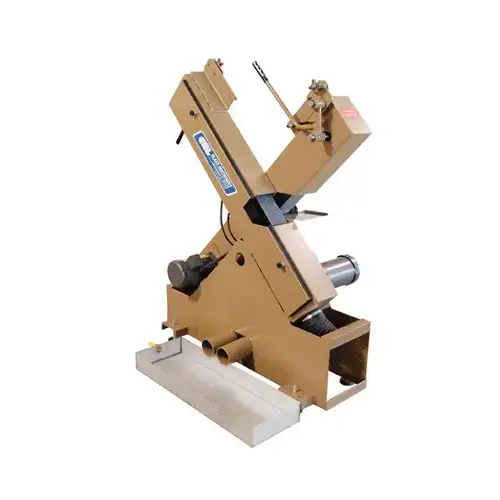

CRL DBS106WClick To Copy 106" Wet Twin Belt Seamer
Item #: DBS106W by CR Laurence
See reviewsSee reviews
In Stock
$15,583.39
/eachSAVE UP TO 1558.34
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1000+ units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 1-1/4" (328 mm) Belt Spacing
- Reduces Silica Dust in Atmosphere and Makes Smoother Seams with Less Chipping
- EZ Dust Collector Connections incorporated into the machine
- Available for Purchase or Lease
- Eliminates Need for Dust Collection Equipment
- 1-1/2" (38.1 mm) Belt Spacing
- Gas Piston Take-ups Maintain Correct Abrasive Belt Tension
- Hinged Access Doors Allow for Faster Belt Changes
- Ideal for tempering plants using a horizontal systems that use a glass washing machine.
- Durable all Welded Steel Frame is fabricated from 1/4" Plate.
- When equipped with a dust collector, can be operated in a dry mode
Height
60" (1524 mm)
Depth
48 in (1219 mm)
Width
44 in (1117.6 mm)
Size
33" W x 33" L x 34 to 36" adjustable height
Footprint
36-1/2" x 28" (927 x 711 mm)
Glass Working Height
36" (914 mm)
Type
Wet
UL Listed
Yes
Belt Slot (Inches)
4 x 106
Belt Slot
4 in. X 106 in. (425 mm X 2692 mm)
Product Overview
The CRL 106" (2.69 m) Wet Twin Belt Seamer can help you safely produce clean, smooth edges on all of your glass. Water is sprayed over the belts, cooling them and the glass, and reducing any chipping of the edges. The water also reduces the silica dust that might become airborne. This Seamer can operate stand alone, or with additional ball caster tables and can be integrated into a multi-step process. A new optional roller track kit is designed to simplify belt change when the seamer is inset in the caster table. The belt nip working height is adjustable from 34" to 36" (863.6 to 914 mm) above the floor. Belts are spaced 1-1/4" (32 mm) apart. The electrical controls are on a 16 ft (4.87 m) long cable, so that they can be remotely positioned convenient to the operator. Operates with two motors @ 1 HP each, 208, 230 or 480 volt, 3 Phase, 60 Hz. Made in the USA.
CONTROLS: All controls are built to OSHA requirements, utilizing CE, CSA, and UL Certified components.
GRINDING BELTS: Requires two each, 4" x 106" (102 mm x 2.69 m) abrasive belts (not included). We recommend using our fast-grinding, 100% polyester backed belts for both wet and dry grinding applications. These belts are available in 14 grit sizes.
NOTE: Versions are available for international voltages.
SPECIFICATIONS:
Electrical - Two Motors, Total 1.0 HP Each (0.745 kW)
Power: 208, 230 or 480 volt, 3 Phase, 60 Hz
Footprint Size: 36" x 66" x 48" (0.914 m x 1.67 m x 1.22 m)
Support Equipment: Twin Seamer Ball Caster Extension Table
Shipping Weight: 600 Lbs. (227 kg)
Glass Working Height: 33" to 36" (838 to 914 mm)
AVAILABLE OPTIONS INCLUDE:
DUST COLLECTOR UNIT Model (Cat. No. DBS2DC) Open style using lined dust collection bags.
SWIVEL BALL CASTER TABLE WITH OPERATOR CUT-OUT - allows glass pieces to be easily moved into position and seamed at a consistent height. Model (Cat. No. B6211500) has ball casters spaced 6" (152.4 mm) apart.
ROLLER TRACK KIT - Model (Cat. No. DBS1RT) - has four roller wheels, a floor track, and floor lock. Designed for rolling-out the seamer during belt changes, when located inset by the swivel ball caster tables extensions.
NOTE: This option will fix working height of the seamer at 36" (914 mm).
Product Warning:
CAUTION: When grinding, always wear safety eyewear and an approved glass dust respirator.
MADE TO ORDER:
Ships Direct From Dallas, TX
