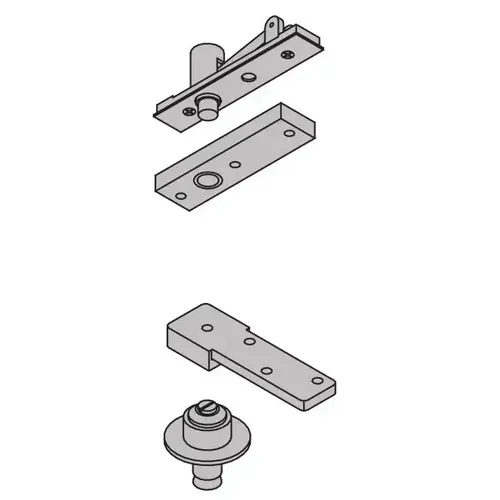

IVES 7253 SET SP28 7253 Center Hung Pivot Set, Aluminum Painted
Item #: 7253 SET SP28 by IVES
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Part of the Schlage Family of Products
- All Mounting Hardware Included
- Made with Durable Materials
- Easy Installation
- Limited 1 Year Warranty
Finish Description
Aluminum Painted
Product Type
Hinge/Pivot
ADA Compliant
No
Finish Family
Aluminum
Included Components
Consists of 7253 Top Header Mount and 7253 Bottom Base Plate Mount
Product Material
Cast Brass
Standards
ANSI/BHMA A156.4 C07032; UL Listed
Maximum Door Load
300 lb.
Function Family
Hinge/Pivot
Vertical Adjustment
3/16 Inch
Features
Positive Locking
Function
Pivot Set
Fire Rated
Yes
Floor To Door Clearance
3/16" to 3/4"
Manufacturer Parent
Allegion
Sub-Series
HP_Pivots_ives_16
Series
7250 Series
Finish
Aluminum Painted
Handing
Non Handed
Color Code
689/US28
Package Qty
1
Base Material
VARIES
Product Overview
7253 Center hung pivot, 300lb with bottom base mount
Certifications
Material substrate
- Maximum door load 300 pounds
- Recommended for use with 1-3/4" minimum door thickness
- Not recommended for doors larger than 4'0" x 8'0"
- Easy installation, tilt on bearing and bearing pin
- Adjustable floor to door clearance 3/16" to 3/4", consult Banner Solutions support if greater than 3/4"
- Vertical adjustment range 3/16", with positive locking
- Non-handed
Certifications
- Meets ANSI/BHMA A156.4 C07032
- UL Listed, 20 minute fire doors
Material substrate
- Made from cast brass
